Intermat 50/65 Hinge For Corner Folding Doors

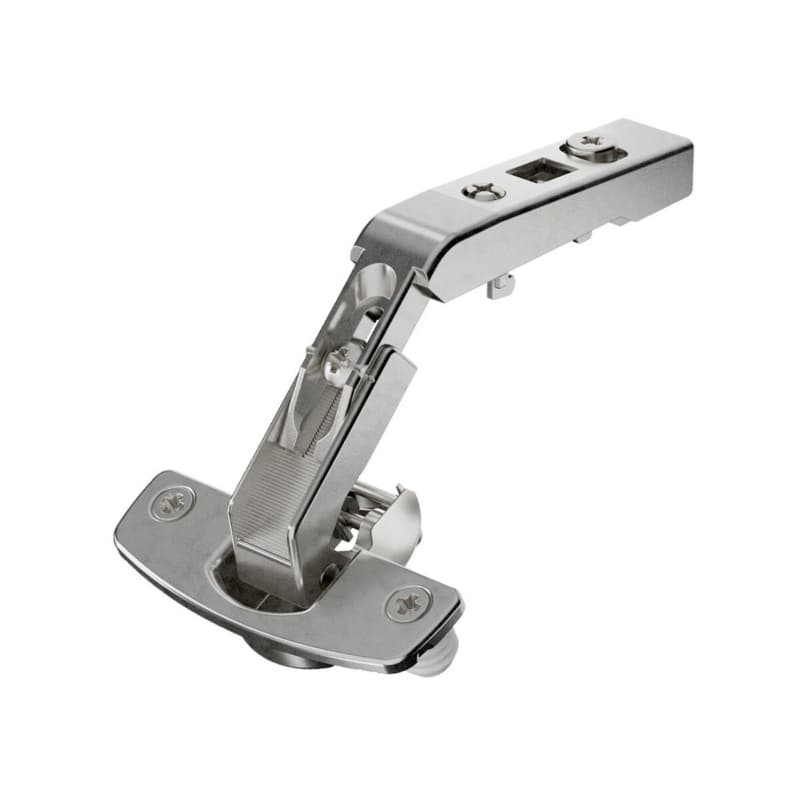

Intermat 50/65 hinge is a concealed cabinet hinge from Hettich designed as a pie cut corner hinge for corner cabinet folding doors, so it provides the pivot point needed where two doors meet at an angle. This hinge belongs to the European concealed long arm hinge class, which lets the arm reach into the opening while keeping the hardware hidden from the front of the cabinet. The hinge is specified for door thickness from 14 to 21mm, so it suits typical cabinet door stock in that range on woodworking jobs. A cup depth of 12.8mm lets the cup recess into the door while leaving material around it for strength. The hinge is finished in nickel, so it matches common cabinet hardware finishes while giving a consistent look across a run of doors.
Key Intermat Hinge Details That Help On Site
- The Intermat hinge is described as easy to fit, which simplifies positioning and fastening on both face-frame and frameless cabinet constructions during installation work.
- Adjustment is described as without effort, so once doors are hung, minor tweaks to door position can be made quickly during final alignment.
- The hinge offers diagonal adjustment of plus 9.5mm and minus 9.5mm, which gives lateral correction range to bring folding doors into proper meeting lines at the corner.
- Height adjustment is provided at the mounting plate, allowing vertical fine-tuning of door position relative to the cabinet for gap control.
- Installation with expanding sockets means the hinge cup is secured in pre-bored holes by expansion, supporting a repeatable mounting method in cabinet production.
- The hinge is classified under EN 15570, Level 2, which indicates it has been tested to a defined European standard relevant to durability of furniture hinges.
Hinge Mounting, Adjustment, And Door Fit Details
This Intermat concealed hinge is described as a self-close overlay solution for face-frame and frameless use, so it is intended to pull the door shut from a small opening angle while overlaying the cabinet front or frame. The hinge is identified as a hinge for corner cabinet folding doors, so it serves in the joint between two connected doors in a corner cabinet layout. Diagonal adjustment of plus 9.5mm and minus 9.5mm gives a substantial side-to-side correction window, helping align the joint line between folding doors and the cabinet front. Height adjustment at the mounting plate lets the installer shift the door up or down on the cabinet, which is useful for matching reveals along adjacent doors. Installation with expanding sockets secures the hinge cup in the 12.8mm deep bore, giving a consistent seating of the hinge in the door.
Using This Pie Cut Corner Hinge In Cabinet Work
Where This Dowel Mount Pie Cut Corner Hinge Fits
This hinge is specified as a pie cut corner hinge and as a hinge for corner cabinet folding doors, so its role is specifically in corner cabinet applications where two doors are linked to swing together. The product is described as suitable for both overlay face-frame and frameless cabinet arrangements, which means it can be applied in different construction styles commonly used in kitchen and casework projects. With a door thickness range of 14 to 21mm, the hinge supports many standard cabinet door builds, from thinner doors up to heavier fronts within that range. The 12.8mm cup depth is matched to the hinge design, so standard boring patterns for this model can be used while maintaining sufficient material around the cup for typical cabinet door construction. The dowel reference in the description indicates that attachment on the door side involves a dowel-based cup connection into the pre-bored holes.
Why Intermat 50/65 Hinge Details Support Alignment
The Intermat hinge line is described as easy to fit, which supports faster mounting on both new cabinet runs and service replacements where hinges need to be swapped while keeping existing drilling. The statement that Intermat hinges can be adjusted without effort relates to day-to-day job efficiency, because once the doors are hung, fine-tuning the door relationship at the corner can be handled through built-in adjustments rather than redrilling. Diagonal adjustment of plus 9.5mm and minus 9.5mm gives the flexibility to correct door meeting lines on folding doors that may be slightly off due to material or drilling variation. Height adjustment at the mounting plate allows top and bottom gaps on the doors to be brought into line across a bank of cabinets. The hinge is categorized under EN 15570, Level 2, so it sits within a standard quality classification for furniture hinges that informs expectations about function in typical cabinet service conditions. The nickel finish supports a consistent appearance on the hardware side whenever the hinges are visible during service work or inside the cabinet.
Common Questions About This Concealed Corner Hinge
What type of cabinet application is this Intermat 50/65 hinge for?
The hinge is identified as a hinge for corner cabinet folding doors, so it is intended for pie cut corner cabinet applications where two doors are linked at the corner.
What door thickness range works with this Hettich Intermat hinge?
The hinge is specified for door thickness from 14 to 21mm, so doors built within that range match the design of the hinge cup and arm geometry.
How does the diagonal adjustment on this hinge help alignment?
The hinge provides diagonal adjustment of plus 9.5mm and minus 9.5mm, giving side-to-side correction to bring folding door joints and reveals into line after mounting.
Where is height adjustment made on this Intermat pie cut hinge?
Height adjustment is specified at the mounting plate, so vertical door position is tuned by shifting the hinge attachment point on the cabinet side.
What does the 12.8mm cup depth mean for door boring?
The specified 12.8mm cup depth indicates how deep the bore in the door needs to be to seat the hinge cup flush while keeping material under the cup.
How is this Intermat hinge secured in the door?
Installation is described as with expanding sockets, so the hinge cup uses expansion in the bored holes to hold the hinge in place on the door.
Select This Intermat Hinge For Corner Folding Doors
The Hettich Intermat 50/65 pie cut corner hinge brings together a concealed long arm design with a door thickness range of 14 to 21mm, so it matches many cabinet door builds. Its diagonal and height adjustments provide the fine control needed to align folding doors at a corner, while the 12.8mm cup depth and expanding socket installation support a consistent fit in the door. For corner cabinet folding door layouts using face-frame or frameless construction, this hinge offers a focused option built around that application.
