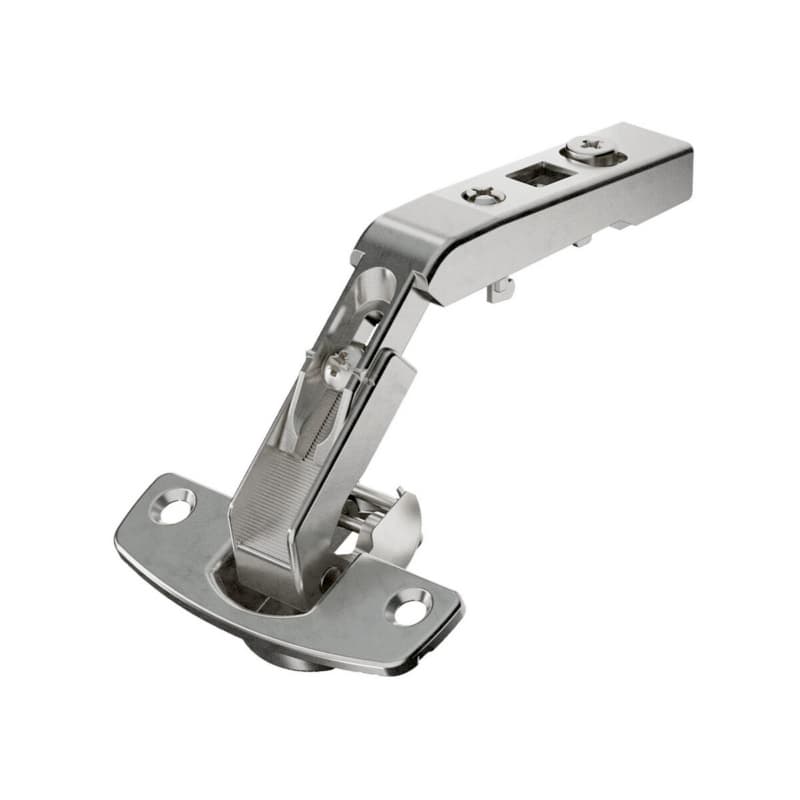

Hettich Intermat pie cut corner hinge is a concealed cabinet hinge designed as a hinge for corner cabinet folding doors, so it lets you build or repair pie cut corner units using a familiar European hinge format. This hinge is described as a self-close overlay face-frame;frameless pie cut corner hinge, so it supports both face-frame and frameless style corner cabinet constructions where an overlay door layout is needed. The hinge is specified as a concealed cabinet hinge, which keeps hardware out of sight when doors are closed, giving corner cabinets a clean, uninterrupted look in the installed kitchen. The product is identified as a European pie cut corner hinge, so it caters to corner carousel or folding door applications that rely on paired doors working together.
The hinge is described as a screw-on type in the designation Intermat 50/65 hinge screw-on, so it fastens to its mounting interface with screws, allowing straightforward assembly using standard shop drivers. Diagonal adjustment of +9.5mm / -9.5mm is built into the hinge, which lets you shift folding doors at the corner joint so the meeting edges align and move smoothly. Height adjustment at mounting plate keeps vertical tuning on the cabinet side rather than the door, which simplifies final fitting when cabinets are already installed against walls. The hinge is identified with a cup depth of 12.8mm, so drilling programs can be standardized across similar doors to maintain consistent seating depth and door overlay behavior.
The hinge is specifically described as a hinge for corner cabinet folding doors, so it is intended for the split-door corners often used in kitchen corner cabinets. This format allows two connected doors to fold away from the cabinet opening, so access to corner storage is improved compared with a single door. The hinge is noted as part of the European pie cut corner hinge category, which matches typical pie cut carousel cabinet designs where doors follow the turntable. Door thickness 14 - 21mm support means it works with many standard kitchen door constructions, so framers and cabinet shops can pair it with common panel and frame builds without changing their core materials. Being a concealed cabinet hinge, it keeps the hardware hidden when doors are closed, so the visible corner shows only the finished door faces.
The Web Description states that Intermat hinges are easy to fit and can be adjusted without effort, which reduces time spent dialing in folding door alignment across a bank of cabinets. Diagonal adjustment of +9.5mm / -9.5mm provides a generous range for shifting doors at the joint, so small drilling tolerances or case variances can be absorbed during final adjustment rather than during machining. Height adjustment at mounting plate moves the vertical fine-tuning to the mounting plate location, so installers can raise or lower door position relative to the cabinet without altering the door cup bores. The hinge is listed with quality classification under EN 15570, Level 2, which references a European hinge performance standard so fabricators can align this product with projects that call for a tested concealed hinge. The description notes that Intermat hinges are handy and versatile and can be used for any application, which supports using the same hinge family across multiple cabinet runs where a pie cut corner hinge is required.
The hinge is described as a hinge for corner cabinet folding doors, so it is intended for pie cut or folding door corner cabinets where two doors work together at the corner.
The hinge is specified for door thickness 14 - 21mm, so it matches common cabinet door stock, helping keep machining and material choices within standard ranges.
Cup depth is given as 12.8mm, so door boring depth is clearly defined and can be programmed for consistent hinge seating and overlay across multiple doors.
Diagonal adjustment of +9.5mm / -9.5mm lets you shift the door position at the hinge, so you can align the folding door joint and corner reveal after installation.
Height adjustment is noted as at mounting plate, so vertical door alignment is handled on the plate side, allowing fine-tuning without altering door bores.
The hinge has quality classification under EN 15570, Level 2, which ties it to a recognized European testing standard for concealed hinges used in cabinet work.
This Hettich concealed cabinet hinge is identified as an Intermat 50/65 hinge screw-on with a 50 degree opening concept that suits pie cut corner layouts, so it targets folding corner doors where controlled opening is important. Its role as a hinge for corner cabinet folding doors and a European pie cut corner hinge helps align it with carousel-style corner cabinets commonly used in kitchens. Specified support for door thickness 14 - 21mm and a 12.8mm cup depth gives shops defined drilling dimensions, so door preparation can be standardized across multiple jobs. Diagonal adjustment of +9.5mm / -9.5mm and height adjustment at mounting plate provide usable adjustment ranges, so installers can fine-tune folding door behavior and appearance on-site using the same hinge design.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
