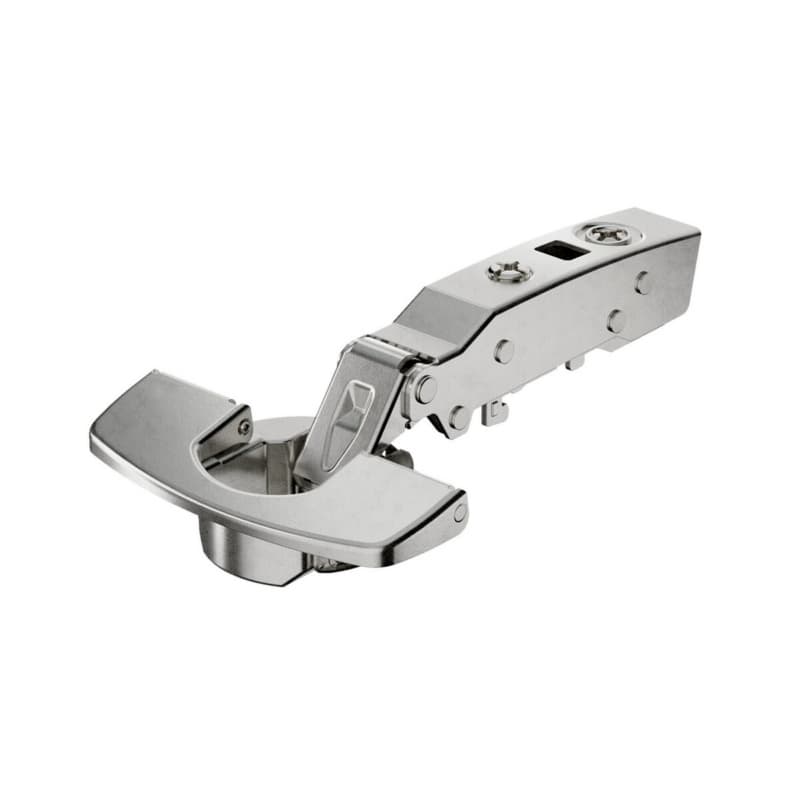

Hettich Sensys Self-Close Full Overlay Face-Frame;Frameless Hinges Nickel, 110° Toolless - 9073653

Hettich Sensys Self-Close Hinge For Cabinet Doors

Hettich Sensys self-close hinge is a concealed cabinet hinge designed as a full overlay option for face-frame or frameless cabinets, so it supports clean fronts while keeping the hardware out of sight during daily use. As a Sensys hinge with zero protrusion, it allows interior drawers or pull-outs to run past the open door, which helps use storage space more efficiently in tight cabinet layouts. The 110 degree opening angle gives doors a wide swing for comfortable access while still controlling movement in normal kitchen or shop environments. This hinge uses the Sensys self closing feature, so doors are pulled closed from the automatic closing range without separate soft-closing parts. Classified as a concealed cabinet hinge, it fits into the cup in the door, helping maintain a streamlined look and consistent function across a run of cabinets.

Key Sensys Hinge Details That Support Cabinet Work

• The wide automatic closing angle of 35 degrees means once the door enters that range, the hinge takes over closing, which reduces the effort needed to shut doors during everyday use.
• The temperature stable damper operates in the 41 F to 104 F (5 C to 40 C) range, so closing behavior stays consistent in typical residential and shop environments where temperatures vary seasonally.
• The zero protrusion design keeps the open door edge clear of the interior, which allows pull-outs or trays behind the door to extend without clashing, helping maximize usable storage space.
• The hinge is specified for door thickness from 15 mm to 24 mm, so it covers common cabinet door materials and helps standardize hardware across different fronts in one project.
• The cup depth of 12.8 mm matches typical boring setups for concealed hinges, so existing drilling patterns for standard cups can be used when setting up doors in production or on-site.
• Quality classification under EN 15570, Level 3, confirms the hinge is tested to a high performance class, supporting long-term door cycling demands in busy cabinet installations.

Adjustment And Fit Details For The Sensys 110 Hinge

The Sensys 110 degree hinge provides integrated overlay adjustment of plus 2 mm to minus 2 mm, so the door position relative to the cabinet front can be shifted laterally to tighten reveals or align neighboring doors after mounting. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door move in and out relative to the cabinet front, which helps fine-tune how the door sits against the face frame or front edge on frameless cases. Height adjustment is provided at the mounting plate, so vertical gaps between doors or between a door and drawer front can be corrected without reboring hinge cups. Together, these adjustment ranges support precise alignment in multi-door runs, helping reduce rework when cabinets settle or when doors need tuning after installation.

Using This Concealed Hinge In Cabinet Projects

Where This Full Overlay Sensys Hinge Fits Best

This Sensys concealed cabinet hinge is specified as a full overlay option for face-frame and frameless cabinets, so it suits layouts where the door covers most of the front and a clean face is important. The 110 degree opening angle provides a broad swing, making it practical for kitchen, bath, or shop cabinets where users reach fully into shelves. Zero protrusion is valuable in cabinets with internal pull-outs or drawers behind hinged doors, because it allows interior components to move without interference from the open door edge. The door thickness range of 15 mm to 24 mm matches common panel materials such as standard cabinet stock, helping keep one hinge type across a variety of fronts on the same job. With the Sensys self closing function active in the automatic closing range, doors are drawn shut consistently, which helps maintain a uniform look when multiple doors are in view.

How Sensys Adjustments Support Repeatable Door Alignment

The integrated overlay adjustment of plus 2 mm to minus 2 mm allows small lateral door movements while the hinge stays mounted, so installers can close up uneven reveals or straighten a door line quickly across a bank of cabinets. Depth adjustment of plus 3 mm to minus 2 mm lets the door sit flush or slightly proud relative to the front, supporting consistent door plane alignment from one cabinet to the next. Height adjustment at the mounting plate helps correct vertical offsets after the fact, which is especially useful when cabinets are already fixed to walls or bases and minor shifts appear over time. The wide automatic closing angle of 35 degrees works together with these adjustments, because once the reveals and planes are tuned, the self closing action continues to pull every door into a repeatable final position. EN 15570 Level 3 quality classification supports this repeatability by indicating testing to demanding performance levels, so aligned doors continue to operate as set over many open-close cycles.

Common Questions About The Hettich Sensys 9073653 Hinge

Select This Sensys Hinge For Precise Cabinet Alignment

The Sensys 110 self-close full overlay hinge with zero protrusion, automatic 35 degree closing, and a 15 mm to 24 mm door thickness range offers a practical concealed solution for face-frame and frameless cabinets. Integrated overlay and depth adjustment, along with height adjustment at the mounting plate, give the fine control needed to align reveals and door planes across a full run. EN 15570 Level 3 classification supports long-term performance in active spaces, so doors continue to behave as set. For cabinet projects where clean fronts, controlled closing, and repeatable adjustment matter, this Sensys concealed cabinet hinge provides a focused hardware option.
