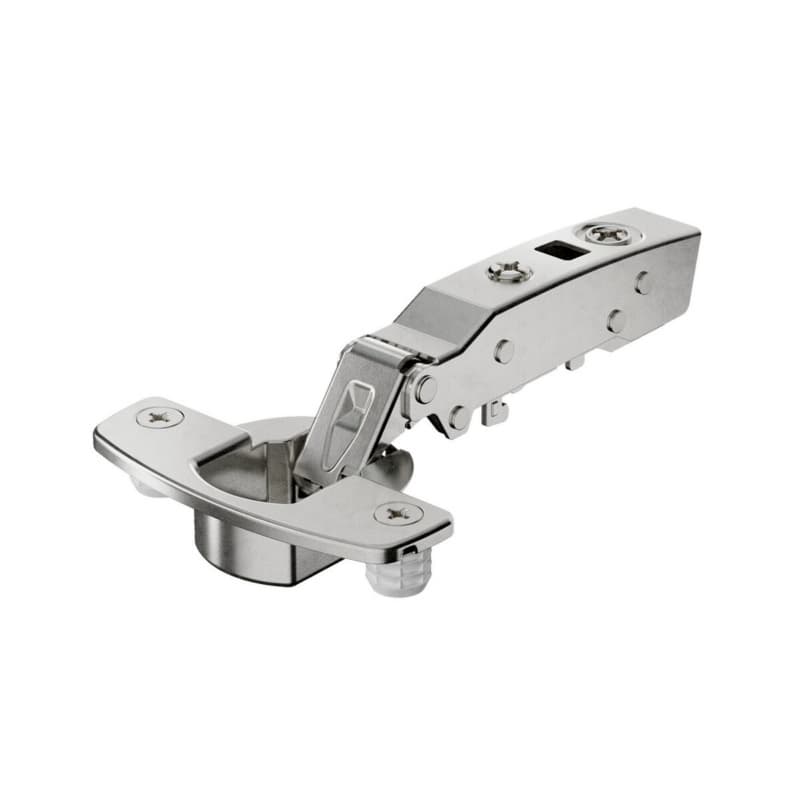

Hettich Sensys Self Close Hinge For Efficient Storage
Hettich Sensys self close hinge is a concealed cabinet hinge that provides a zero protrusion swing, which helps cabinets use storage space more efficiently because the door does not project into the cabinet interior when opened. This hinge is a full overlay design for face-frame and frameless cabinets, so the door can cover the cabinet front the way installers expect in modern European style layouts. The hinge works as a self closing Sensys 8645 model, so doors are pulled shut from the closing angle instead of being left ajar. As a European concealed long arm hinge in nickel finish, it keeps the hardware out of sight while still giving ample arm length for adjustment on the door. The 110 degree opening angle gives a wide door swing that improves access to cabinet interiors during everyday use and during installation adjustments.
Key Sensys 110 Features That Save Time
- The zero protrusion concealed hinge design keeps the hinge from entering the cabinet interior, which protects stored items and allows pull-out components to move without interference.
- The wide automatic closing angle of 35 degrees pulls the door closed once it passes that angle, which helps doors sit consistently shut without additional catches.
- The temperature stable damper works from 41 F to 104 F, so the closing behavior remains predictable in typical residential and shop environments without seasonal variation in motion.
- The full overlay hinge format is suited to doors that need to cover the cabinet front, which supports clean cabinet lines and consistent reveals on face-frame or frameless runs.
- The Hettich quality classification under EN 15570, Level 3, shows the hinge is tested to a recognized standard, which gives installers a clear benchmark for performance expectations.
Hinge Mounting, Cup Depth, And Adjustment Details
This Sensys 110 hinge uses a cup depth of 12.8mm, which sets how deep the mortise in the door needs to be for proper seating of the hinge cup. The hinge is designed for door thickness from 15mm to 24mm, so it covers a range of common cabinet door constructions used in many shops. Integrated overlay adjustment of plus or minus 2mm allows the installer to shift the door overlay on the cabinet front, which helps line up reveals between adjacent doors after mounting. Integrated depth adjustment of plus 3mm and minus 2mm lets the door move in and out relative to the cabinet, which aids in bringing doors flush with the cabinet face or neighboring panels. Height adjustment is set at the mounting plate, which provides vertical alignment control across a run of doors when the plate system is fitted.
Using This Sensys Concealed Hinge In Real Projects
Where The Sensys 110 Hinge Works Best
The Sensys 110 self close concealed cabinet hinge is suited to European standard cabinet applications where a full overlay door is required on either face-frame or frameless constructions, because the hinge is defined for that door style. Its 110 degree opening angle supports typical kitchen, bath, and storage cabinet layouts, allowing doors to open wide enough for access while still staying within common corner and adjacent-door clearances. The zero protrusion hinge geometry favors cabinets that use interior pull-outs or organizers, since the door and arm do not project into the cabinet space when swung open. The allowed door thickness band of 15mm to 24mm covers many engineered and solid panel builds, which lets shops standardize this hinge across different door materials. The cup depth of 12.8mm aligns with common boring practices for concealed hinges, streamlining machining setups on production equipment.
Adjustment Details That Support Consistent Results
The integrated overlay adjustment range of plus or minus 2mm on this Hettich Sensys self close hinge gives practical room to fine tune the sideways position of each door, which helps keep margins uniform even if drilling or mounting locations vary slightly. The integrated depth adjustment of plus 3mm and minus 2mm supports bringing door faces into plane with each other, which is important on long cabinet runs where small deviations are visible. Height adjustment takes place at the mounting plate, so vertical tweaks can be handled without altering the door boring, which speeds up onsite alignment work. The wide automatic closing angle of 35 degrees works with these adjustments by pulling the door closed from a consistent point, which reduces the tendency for doors to sit partly open. The temperature stable damper range from 41 F to 104 F keeps the closing motion behavior steady across typical interior climates.
Common Questions About This Sensys 110 Hinge
What type of cabinet doors suit this Sensys 110 hinge?
This Sensys self close full overlay hinge is suited to doors in the 15mm to 24mm thickness range, which aligns with many European style face-frame and frameless cabinet doors.
How far does the Hettich Sensys self close hinge open?
The Sensys 110 hinge opens to 110 degrees, giving a wide swing that improves cabinet access while staying within common clearances for adjacent cabinets and walls.
What does zero protrusion mean on this cabinet hinge?
Zero protrusion on this concealed hinge means the hinge does not project into the cabinet interior when opened, which supports using interior pull-outs and storage without interference.
How does the 35 degree automatic closing angle help?
The 35 degree automatic closing angle means once the door passes that point, the hinge pulls it shut, giving doors a consistent closed position without extra catches.
What adjustments are built into the Sensys 110 hinge?
The Sensys 110 hinge provides integrated overlay adjustment of plus or minus 2mm and depth adjustment of plus 3mm and minus 2mm, while height adjustment is handled at the mounting plate.
What does EN 15570 Level 3 classification indicate?
The EN 15570 Level 3 quality classification indicates this hinge has been tested to a defined European standard, giving a reference point for its performance characteristics.
Select This Sensys Hinge For Full Overlay Projects
The Hettich Sensys 110 self close concealed cabinet hinge with full overlay design, 12.8mm cup depth, and door suitability from 15mm to 24mm thickness offers a clear fit for European style cabinets. Its zero protrusion geometry and 110 degree opening angle support cabinets using interior pull-outs or deep storage, while integrated overlay and depth adjustments help fine tune reveals and alignment on site. With its automatic 35 degree closing angle and temperature stable damper operating from 41 F to 104 F, this hinge maintains consistent closing behavior across typical interior conditions, making it a practical choice for repeatable cabinet installations.
