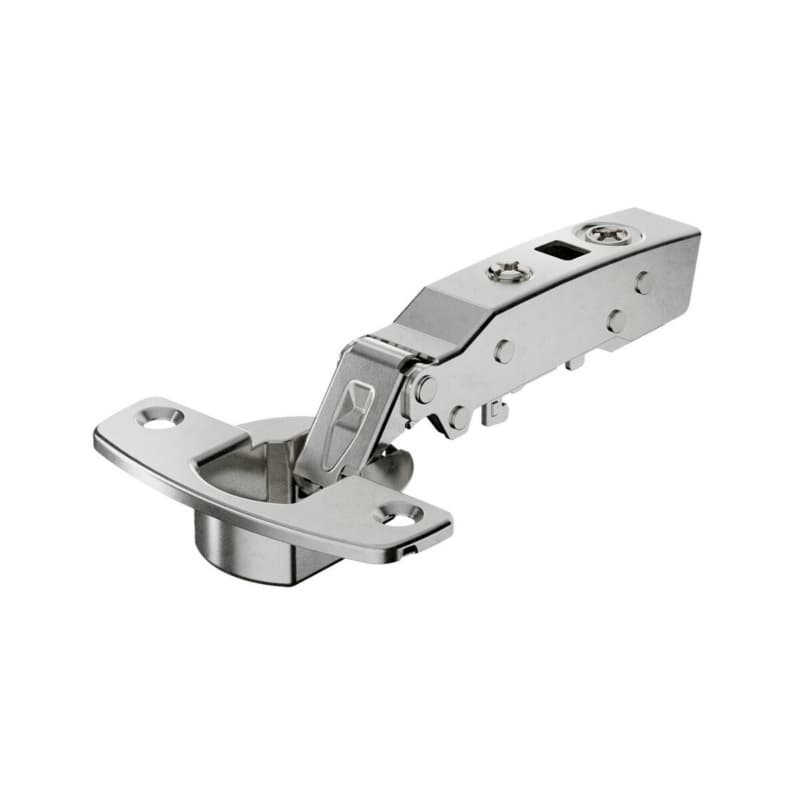

Hettich Sensys Self-Close Hinge For Cabinets

Hettich Sensys self-close hinge is a concealed cabinet hinge for full overlay applications on face-frame and frameless cabinets, so doors close cleanly while the hardware stays hidden. The zero protrusion design keeps the hinge arm out of the cabinet interior swing area, which supports optimum use of storage space behind the door. A 110 degree opening angle lets doors swing wide enough for everyday access while still controlling the arc for typical cabinet layouts. The self closing feature on this Sensys 8645 variant pulls the door shut from the last part of travel, which helps doors settle consistently without separate closing devices. This hinge is classified as a concealed cabinet hinge, so it fits European-style long arm layouts where appearance and interior clearance matter.

Key Sensys 9073647 Details For Daily Use

• The wide automatic closing angle of 35 degrees engages the self closing action earlier, helping the door draw in smoothly during the final part of closing and reducing the need for force at the handle.
• The temperature stable damper is specified for 41 F to 104 F (5 C to 40 C), so the closing performance stays more consistent in typical indoor shop and kitchen conditions across seasons.
• The hinge offers integrated overlay adjustment of plus 2mm to minus 2mm, giving lateral door movement for fine-tuning gaps between doors and cabinet sides after mounting.
• The integrated depth adjustment of plus 3mm to minus 2mm lets the door move in and out relative to the cabinet front, which helps align the door face with adjacent fronts and trim.
• Height adjustment is located at the mounting plate, so vertical door position can be tuned at the plate interface while the hinge cup stays fixed in the door.
• Quality classification under EN 15570, Level 3, indicates the hinge is tested to that standard, which matters for projects that reference European performance classifications.

110 Degree Screw-On Hinge Mounting And Setup

This 110 degree screw-on hinge design fastens to the cabinet with screws through the hinge components, so the installer can position the hardware precisely on face-frame or frameless constructions that match the hinge geometry. The cup depth of 12.8mm defines how far the hinge cup bores into the door, which affects boring depth and ensures proper seating in standard cabinet door thicknesses within the specified range. This model is specified for door thickness from 15mm to 24mm, so it suits many common cabinet door builds that fall inside that metric thickness window. Without the silent system, this version relies on its self closing feature for door pull-in, which simplifies the hinge function when a separate soft-close requirement is not part of the project.

Using This European Concealed Long Arm Hinge

Where This Sensys 110 Degree Hinge Fits

This hinge is listed in the European concealed long arm hinges category, so it fits layouts built around full overlay doors on cabinets using that concealed geometry. The full overlay designation identifies it for doors that cover most of the cabinet front, which is typical for many kitchen and casework designs needing a clean frontal appearance. The ability to work with both face-frame and frameless cabinet types gives flexibility when the same hinge style is preferred across different construction methods on a job. The zero protrusion characteristic means the hinge arm does not intrude into the cabinet interior swing path, which benefits storage layouts that run shelves or pull-outs close to the door opening.

Adjustment Features That Support Clean Results

The integrated overlay adjustment range of plus 2mm to minus 2mm lets the installer shift the door sideways relative to the opening, which helps dial in consistent reveals between adjacent doors or between a door and cabinet side. With integrated depth adjustment of plus 3mm to minus 2mm, the door position can move toward or away from the cabinet face, which is useful for aligning fronts flush across a run of cabinets or with surrounding panels. Height adjustment at the mounting plate gives vertical movement of the door without altering the bored cup, which keeps the structural relationship between the hinge and door edge intact while fine-tuning top and bottom gaps. Together, these adjustments reduce rework when cabinetry or walls are slightly out of true, because the hinge hardware provides controlled movement in three directions after installation.

Common Questions About Sensys 9073647 Hinge Details

Selecting This Hettich Sensys Self-Close Hinge

This Hettich Sensys full overlay hinge from Wurth Baer Supply combines a 110 degree opening angle with self closing action and three-way adjustment, so it supports precise cabinet door alignment. The specified 15mm to 24mm door thickness range and 12.8mm cup depth define its fit on metric cabinet doors. With zero protrusion for storage space use and quality classification under EN 15570 Level 3, it suits cabinet installations where concealed hardware and controlled movement are part of the project requirements.
