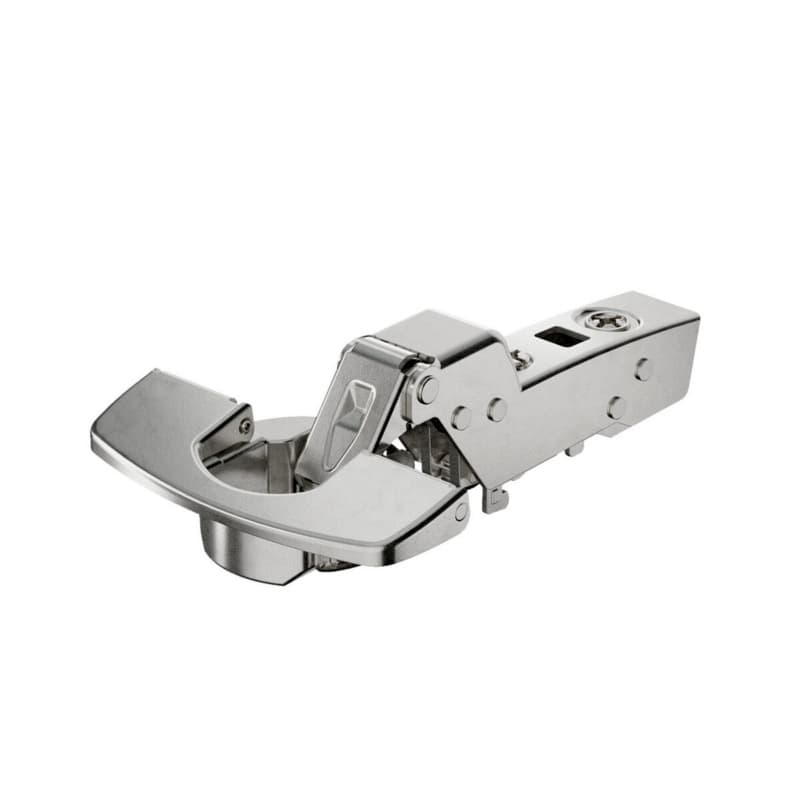

Hettich Sensys Self-Close Inset Overlay Face-Frame;Frameless Hinges Nickel, 110° Toolless - 9073655

Hettich Sensys Self-Close Hinge For Cabinet Doors

Hettich Sensys self-close hinge is a concealed cabinet hinge with zero protrusion that lets doors open without the hinge arm projecting into the cabinet interior, which helps you use storage space efficiently right up to the front edge. This hinge offers a 110 degree opening angle, giving wide access to the cabinet while keeping the door controlled as it swings. The built-in self closing feature pulls the door shut over the final part of travel, which helps doors close consistently without extra latches. The hinge is part of the Sensys 8645 series, so it follows the Sensys geometry that many installers already know. Classified under EN 15570, Level 3, the hinge meets a defined quality standard, which matters on cabinets that see frequent opening and closing in daily use.

Key Sensys Hinge Details That Support Daily Use

• The zero protrusion concealed hinge design keeps the hinge arm out of the cabinet interior space, which helps when fitting internal pull-outs or shelves near the front.
• The 110 degree opening angle lets the door swing wide, which improves access to the cabinet contents and makes it easier to load or adjust items inside.
• The wide automatic closing angle of 35 degrees draws the door in from a relatively open position, which supports a smooth self closing action over a longer range.
• The temperature stable damper rated from 41 F to 104 F maintains its damping performance within that range, which helps the closing feel stay consistent in typical room conditions.
• The hinge is without silent system but with self closing, so the door is pulled shut positively while the user experiences a firm closing action rather than a soft-close motion.
• Quality classification under EN 15570, Level 3, indicates the hinge has been tested to that standard, which matters for long-term performance demands in busy kitchens or work areas.

Mounting, Adjustment, And Door Fit Details

The hinge offers integrated overlay adjustment of plus 2 mm to minus 2 mm, which lets you shift the door sideways on the cabinet to tighten reveals and align adjacent fronts. Integrated depth adjustment of plus 3 mm to minus 2 mm lets you move the door in and out relative to the cabinet front, which helps flush the door face with nearby components or frames. Height adjustment is handled at the mounting plate, so vertical fine-tuning happens on the plate rather than at the hinge arm, which keeps the hinge mechanism itself clean and focused on movement. The cup depth of 12.8 mm suits doors that match the specified drilling depth, which helps the hinge sit correctly in the cup for stable motion.

Using This Sensys Concealed Hinge In Cabinet Projects

Where This Hettich Sensys Hinge Works Best

This Sensys concealed cabinet hinge is designed for cabinet doors with thickness between 15 mm and 24 mm, which covers a common range of furniture and kitchen door materials. By matching this thickness range, the hinge geometry keeps the pivot point and overlay behavior in the intended zone for proper clearances. The self closing feature is built into the hinge, so once the door passes the wide automatic closing angle of 35 degrees, the hinge pulls it to the closed position. The temperature stable damper works from 41 F to 104 F, which aligns with conditions found in most indoor cabinet environments. Within that band, the closing action remains predictable, supporting a repeatable door feel throughout seasonal temperature changes inside homes or shops. As a concealed hinge in nickel finish, it stays hidden in use while presenting a clean hardware look when the door is open.

Adjustment Features That Support Clean Results

The integrated overlay adjustment of plus 2 mm to minus 2 mm lets installers correct small drilling or layout variations after the hinge is mounted, which helps achieve even gaps between doors without re-boring holes. Integrated depth adjustment of plus 3 mm to minus 2 mm allows fine control over how far the door sits from the cabinet front, which helps coordinate the door plane with neighboring cabinets, panels, or appliances. Height adjustment located at the mounting plate gives a dedicated point for raising or lowering the door, which simplifies on-site tweaking when multiple doors must share a continuous horizontal line. As a zero protrusion hinge, the arm design keeps clear of the cabinet interior as the door opens, which supports the placement of drawers or pull-outs behind the door line without the hinge interfering with their movement.

Common Questions About The Sensys 9073655 Hinge

Selecting This Sensys Hinge For Your Cabinets

This Sensys concealed cabinet hinge from Hettich America Corporation provides a 110 degree opening angle, self closing action, and zero protrusion design, which together support efficient cabinet layouts with internal storage near the front. With integrated overlay and depth adjustments plus height adjustment at the mounting plate, the hinge offers practical on-site control of door position. The specified door thickness range of 15 mm to 24 mm and cup depth of 12.8 mm define the construction window it serves, helping you match it to cabinet doors built within those parameters.
