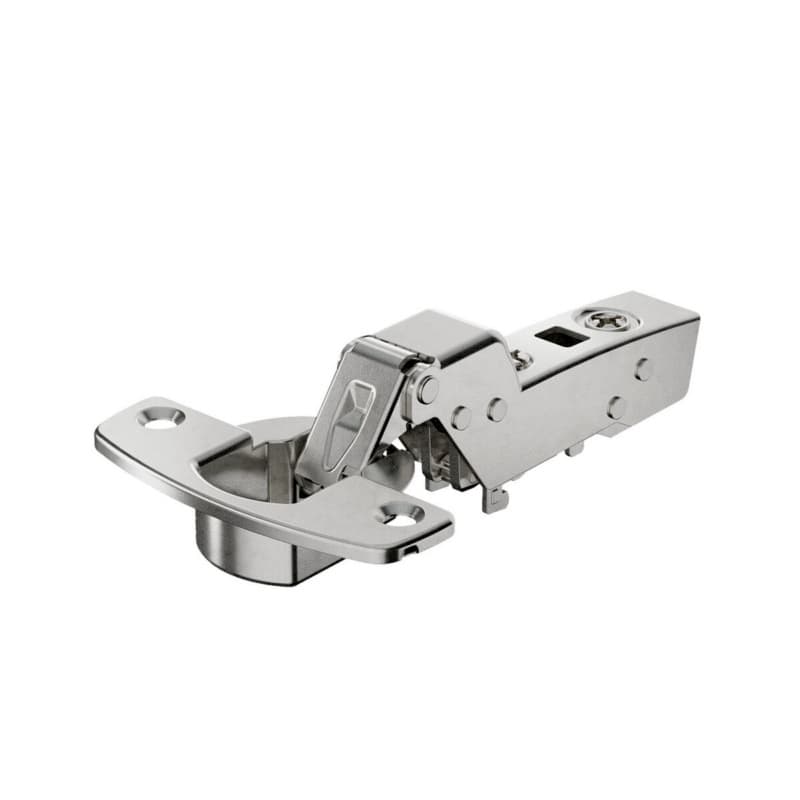

Hettich Sensys self close hinge is a concealed cabinet hinge designed for European style applications where the hardware stays out of sight but controls the door movement. The zero protrusion design allows the hinge arm to stay within the cabinet profile when the door is fully open, which helps when interior drawers or roll-outs need to operate without interference. A wide automatic closing angle of 35 degrees pulls the door closed once it reaches that point, so the door transitions from manual movement to automatic closing in a consistent zone. The self closing feature on the Sensys 8645 hinge brings the door to the cabinet without requiring separate closing devices, which simplifies the overall hinge layout on the job.
This Sensys 110 screw-on hinge uses a screw-on installation method, so the hinge cup and arm fasten to the cabinet and door with screws during layout and mounting. A cup depth of 12.8mm locates the hinge cup pocket in the door, which guides boring depth when setting up drilling equipment. The hinge is suitable for door thicknesses from 15mm to 24mm, so door design can stay within this range to match the hinge geometry. Integrated overlay adjustment of plus 2mm to minus 2mm allows side-to-side alignment at the hinge arm, which helps fine-tune reveals. Integrated depth adjustment of plus 3mm to minus 2mm shifts the door in and out relative to the cabinet front, which supports flush alignment. Height adjustment takes place at the mounting plate, so vertical reveals can be tuned without moving the cup in the door.
This Sensys concealed cabinet hinge belongs to the category of European concealed long arm hinges, which suits modern cabinet construction where clean exterior lines are important. As a concealed cabinet hinge with nickel finish, it supports installations where visible hardware is minimized but a consistent hinge style is required throughout the project. The hinge is designed for door thicknesses between 15mm and 24mm, so typical cabinet doors built in this range can be matched to the hinge without changing standard door construction methods. The zero protrusion characteristic allows interior organizers, pull-out shelves, or other cabinet components to move through the opening while the door is open to 110 degrees, which can reduce layout compromises inside the cabinet. Because the hinge functions as a self close unit without a separate silent system, it fits jobs where a controlled close is needed but a dedicated soft close feature is not part of the specification.
The integrated overlay adjustment of plus 2mm to minus 2mm on the Sensys hinge allows the door position to shift sideways relative to the cabinet opening, which is useful for matching reveals across multiple doors on a run. Integrated depth adjustment of plus 3mm to minus 2mm moves the door closer to or farther from the cabinet front, which helps align doors with face frames or adjacent panels for a consistent plane. Height adjustment at the mounting plate means vertical door movement can be handled at the plate location, which avoids re-boring the cup hole in the door during fine-tuning. The 12.8mm cup depth forms the basis for repeatable boring patterns, so once drilling equipment is set for that depth, door production can proceed with consistent hinge seating. Operating in a temperature range from 41 F to 104 F, the temperature stable damper maintains hinge behavior in conditioned spaces, which supports predictable door movement over time.
The Hettich 9073649 is a Sensys concealed cabinet hinge in the European concealed long arm hinge category, so it fits projects using European standard hinge layouts.
The Sensys hinge provides a 110 degree opening angle, so doors can swing wide enough for interior access while retaining its zero protrusion characteristics.
This Sensys concealed hinge is specified for door thicknesses from 15mm to 24mm, so cabinet doors built within that range can be matched to the hinge geometry.
The Sensys hinge has a wide automatic closing angle of 35 degrees with a self closing feature, so once the door reaches that angle it continues closing on its own.
The hinge offers integrated overlay adjustment of plus 2mm to minus 2mm, depth adjustment of plus 3mm to minus 2mm, and height adjustment at the mounting plate for door alignment.
The Sensys hinge uses a temperature stable damper specified for 41 F to 104 F, so door motion remains consistent in typical indoor cabinet environments.
The Sensys concealed cabinet hinge from Hettich America Corporation combines a 110 degree opening angle with zero protrusion, which supports accessible cabinet interiors with unobstructed hardware. With a 12.8mm cup depth and a door thickness range of 15mm to 24mm, the hinge aligns with common boring setups and door constructions in cabinet shops. Integrated overlay and depth adjustments, plus height adjustment at the mounting plate, give installers the ability to tune reveals and door alignment directly at the hinge. For projects calling for a self closing European concealed long arm hinge tested to EN 15570, Level 3, this hinge offers a focused set of functional details for cabinet builds.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9072540 Mfr# 9072540 | Opening Angle Limiter for Sensys 110˚ Hinge, White |
