Sensys Concealed Cabinet Hinge For Precise Doors

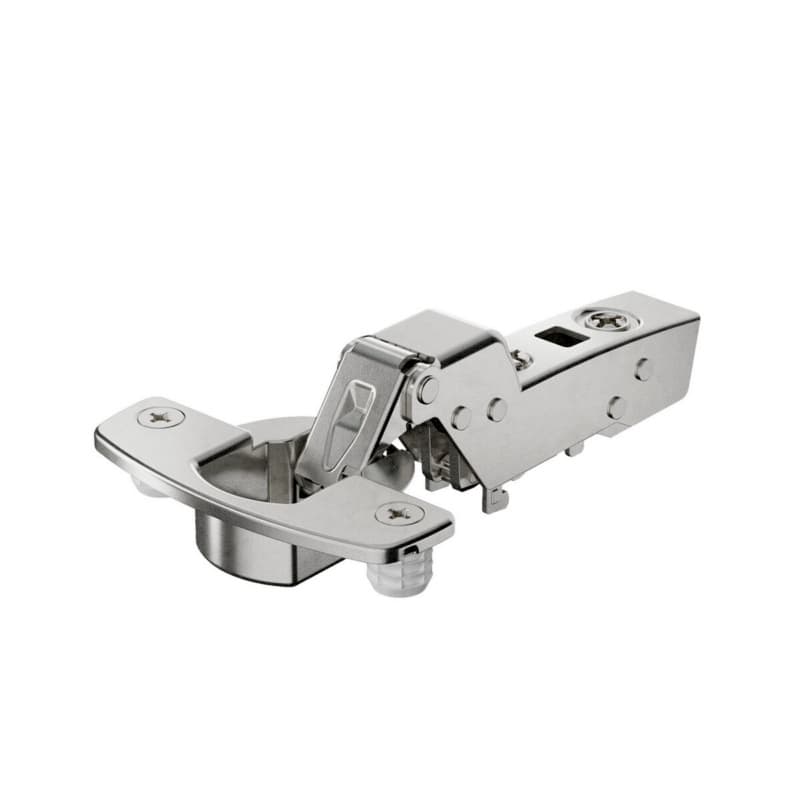

Sensys concealed cabinet hinge is a concealed cabinet hinge from Hettich America Corporation designed for inset and overlay applications on face-frame and frameless cabinets, so it supports a wide range of cabinet construction approaches on the same hinge platform. As a European standard concealed long arm hinge in the concealed cabinet hinges class, it keeps hardware out of sight while providing the motion and adjustment needed on built-ins and casework. The 110 degree opening angle gives doors ample swing for normal cabinet access while keeping movement controlled in tight runs or near walls. A cup depth of 12.8mm provides the drilling depth reference for the door, tying the hinge layout directly to hinge cup boring operations. Quality classification under EN 15570, Level 3 signals that the hinge is tested to a defined European standard level for function and durability.
Hinge Details That Support Cabinet Performance
- The zero protrusion concealed hinge design lets interior storage space be used up to the hinge line, which matters when fitting roll-outs, organizers, or wide items close to the door plane.
- The self closing feature of the Sensys 8645 hinge pulls the door into the closed position over the final travel, which helps doors sit consistently shut without repeated manual adjustment.
- The wide automatic closing angle of 35 degrees means the hinge begins its closing action well before the door is nearly shut, guiding the door into alignment as it approaches the cabinet front.
- The temperature stable damper rated from 41 F to 104 F (5 C to 40 C) keeps its damping behavior within that range, so closing performance stays more consistent in normal room and shop environments.
- The nickel finish on the hinge provides a neutral, bright surface that suits most cabinet interiors and offers a familiar appearance for installers working across different job sites.
Adjustment And Fit For Cabinet Installation
The integrated overlay adjustment of plus 2mm and minus 2mm allows the door position to be shifted sideways on the cabinet, so reveals along the face frame or between adjacent doors can be tuned after mounting. Integrated depth adjustment of plus 3mm and minus 2mm lets the door move in and out relative to the cabinet front, which helps align the door face to surrounding panels or appliance fronts. Height adjustment at the mounting plate gives vertical movement at the hinge connection point, so door tops and bottoms can be leveled across a run without redrilling. The hinge is specified for door thickness from 15mm to 24mm, setting a clear range where the cup design and geometry are intended to operate correctly on cabinet doors.
Using This Sensys 110 Cabinet Hinge On Jobs
Where This Zero Protrusion Hinge Fits Best
This Sensys 110 cabinet hinge is described as a zero protusion concealed hinge, so when doors are opened the arm geometry avoids encroaching deeply into the cabinet space, which helps when drawers or pull-outs run closely behind the doors. Being suited for inset and overlay use on both face-frame and frameless cabinets, the hinge can be applied on traditional framed kitchen runs, full access frameless boxes, or mixed conditions in the same project. The 110 degree opening angle offers a familiar swing range that works well for most base and wall cabinets, balancing access with the need to keep doors clear of adjacent obstacles. Door thickness capability from 15mm to 24mm covers common engineered board and solid fronts within that band, supporting a consistent drilling and hinging approach across multiple door styles.
Why Sensys Adjustments Support Consistent Results
The integrated overlay adjustment of plus 2mm and minus 2mm is built into the hinge, so horizontal fine-tuning happens at the hardware rather than at the cabinet, which helps when aligning multiple doors during final fitting. Depth adjustment of plus 3mm and minus 2mm allows the door to move closer to or farther from the cabinet front, which is useful for flushing door faces across corners, appliance panels, or end panels without reworking the case. Height adjustment at the mounting plate means vertical corrections are handled at the plate connection, supporting quick straightening of sight lines across stacked or side-by-side doors. The temperature stable damper operating between 41 F and 104 F (5 C to 40 C) keeps its behavior within that band, which supports repeatable closing feel in typical residential and commercial interior conditions. EN 15570 Level 3 quality classification shows the hinge has been assessed to that standard level, giving installers a documented reference point when specifying hardware for projects that recognize European hinge performance criteria.
Practical Questions About This Hettich Sensys Hinge
What type of hinge is the Hettich 9073652?
The Hettich 9073652 is a Sensys concealed cabinet hinge in the European standard concealed long arm hinge class, so it mounts inside the cabinet while providing full-function door movement.
How far does this Sensys hinge allow the door to open?
This Sensys hinge provides a 110 degree opening angle, giving doors a wide swing for access while still controlling the arc in tight cabinet layouts.
What door thickness range does this hinge support?
This hinge is specified for door thickness from 15mm to 24mm, so it matches many common cabinet door constructions in that thickness band.
How does the self closing feature help cabinet doors?
The self closing feature on the Sensys 8645 version pulls the door closed over the last part of travel, helping doors seat firmly against the cabinet front.
What adjustments are built into this Sensys 110 cabinet hinge?
The hinge offers integrated overlay adjustment of plus 2mm to minus 2mm, depth adjustment of plus 3mm to minus 2mm, and height adjustment at the mounting plate.
Why does the temperature stable damper range matter?
The temperature stable damper is rated from 41 F to 104 F (5 C to 40 C), so its closing behavior remains more consistent across typical indoor temperature swings.
Select This Hinge For Controlled Cabinet Motion
The Hettich Sensys self close hinge with 110 degree opening, self closing feature, and zero protusion concealed design gives cabinet projects controlled motion and usable interior space based on documented specifications. With integrated overlay, depth, and height adjustments, this concealed cabinet hinge from Wurth Baer Supply supports the fine-tuning needed on professional installations using doors from 15mm to 24mm thick. Selecting this Sensys concealed cabinet hinge aligns hinge choice with a defined EN 15570 Level 3 quality classification for projects that call for a tested European standard hinge.
