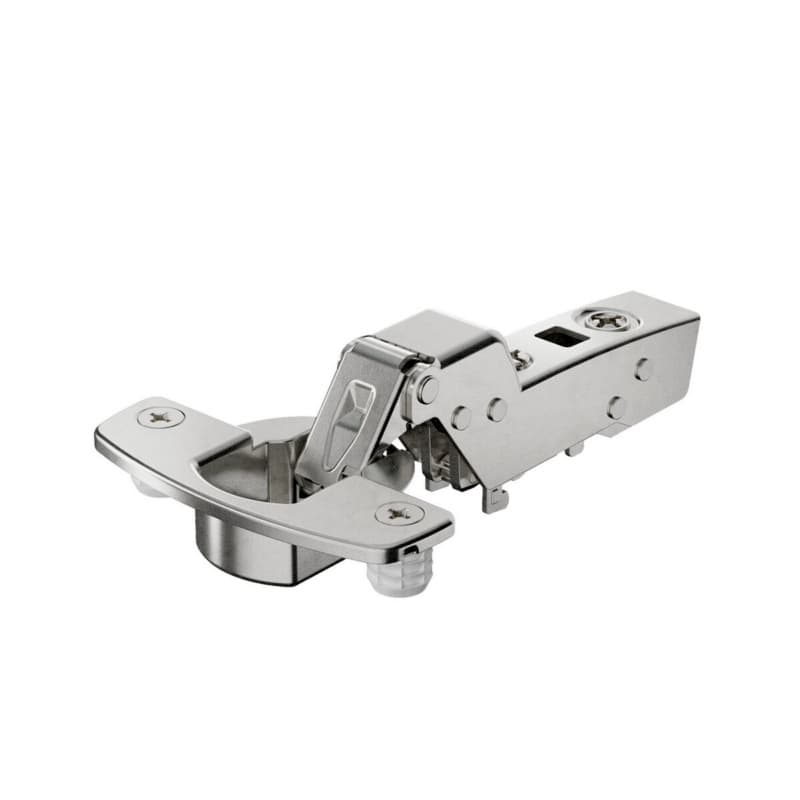

Hettich Sensys Soft-Close Hinge For Cabinetry
Hettich Sensys soft-close hinge is a concealed cabinet hinge designed for face-frame and frameless applications where a clean look and smooth closing action matter on every door. This hinge delivers a zero protrusion design, so the hinge arm stays out of the cabinet interior space when the door is open, which supports better use of storage areas and smoother shelf adjustments. The hinge opens to 110 degrees, giving ample access into the cabinet for everyday use and for installers working inside the case. With the Silent System integrated, the hinge controls door closing quietly through the full motion. The soft-close function is handled by a damper that operates in a temperature range from 41 F to 104 F (5 C to 40 C), which maintains consistent closing behavior in typical residential and shop environments.
Key Sensys Hinge Details That Support Your Work
- The zero protrusion concealed hinge layout keeps the hinge from extending into the cabinet interior when the door is open, which helps when cabinets use pull-out storage or fully loaded shelves.
- The 110 degree opening angle creates generous access to the cabinet, making door adjustments, shelf changes, and hardware installation easier in both new builds and retrofit jobs.
- The Silent System soft-close function is built into the hinge, so every close is damped, which reduces impact on the door and frame over time and improves the finished feel of the cabinet.
- The damper operates reliably from 41 F to 104 F (5 C to 40 C), keeping closing performance consistent in normal kitchen, bath, and shop conditions.
- Steel construction with a nickel plated finish provides a hard-wearing hinge body, which supports long service life in everyday cabinet use and maintains a uniform appearance with other nickel hardware.
- Quality classification under EN 15570, Level 3, indicates the hinge has been tested to a demanding performance standard, which matters on projects where longevity and repeatable function are important.
Installation Geometry And Adjustment On The Hinge
This Sensys hinge is designed for doors with thickness from 15 mm to 24 mm, so it suits a wide range of cabinet door constructions used in both face-frame and frameless work. The cup depth of 12.8 mm fits standard European style 35 mm cup boring patterns while giving enough material behind the cup for strength on typical doors. Integrated overlay adjustment of plus 2 mm to minus 2 mm lets the installer fine-tune the door position sideways after mounting, which helps align reveals across a run of cabinets. Integrated depth adjustment of plus 3 mm to minus 2 mm provides fore-and-aft positioning, helping align the door to the cabinet front. Height adjustment is arranged at the mounting plate, allowing vertical tuning of the door to line up tops and bottoms across adjoining cabinets.
Using This Sensys Hinge In Cabinet Projects
Where This Concealed Hinge Fits Best
This Sensys concealed cabinet hinge is specified as an inset overlay hinge for both face-frame and frameless cabinets, so it suits projects that mix construction styles while keeping a common hinge system. The zero protrusion design is especially useful in cabinets with interior pull-outs, as the open hinge does not interfere with moving components inside the case. With a 110 degree opening angle, the hinge supports everyday kitchen and bath access while still protecting nearby doors from over-travel contact in tight runs. The door thickness range from 15 mm to 24 mm serves common panel stock used in modern cabinetry, so designers and installers can select materials within this band and rely on known hinge performance.
Why The Sensys Adjustments Improve Results
The integrated overlay adjustment of plus 2 mm to minus 2 mm gives side-to-side movement at the hinge, which allows precise tuning of gaps between doors and between door and frame after initial screw placement. This adjustability reduces re-drilling and saves time during final alignment on site. The integrated depth adjustment of plus 3 mm to minus 2 mm moves the door closer to or farther from the cabinet front, which helps achieve a flush or planned reveal line across multiple cabinets even when cases are slightly out of plane. Height adjustment located at the mounting plate means vertical door positioning can be dialed in without disturbing cup-side screws, which is useful when working on an installed run. The Silent System soft-close working within 41 F to 104 F (5 C to 40 C) keeps the damping behavior predictable across seasonal temperature swings in kitchens and utility areas. Backed by EN 15570, Level 3 quality classification, these combined adjustments and performance characteristics support consistent, repeatable hinge behavior across heavy-use installations.
Common Questions About The Hettich Sensys 9073622 Hinge
What type of cabinet construction is this hinge designed for?
The Hettich Sensys 9073622 hinge is described for inset overlay face-frame and frameless applications, so it suits both traditional face-frame boxes and frameless European style cabinets.
How far does the Hettich Sensys 9073622 hinge open?
The hinge opens to 110 degrees, giving wide access into the cabinet and room for hands and tools during installation and future adjustments.
What door thickness range does this Sensys hinge support?
The hinge is specified for door thickness from 15 mm to 24 mm, covering common cabinet door materials used in residential and commercial projects.
How deep is the cup boring needed for this hinge?
The Hettich Sensys 9073622 hinge uses a cup depth of 12.8 mm, matching standard 35 mm hinge cup drilling while leaving material behind the cup for strength.
What soft-close performance can I expect in different temperatures?
The integrated Silent System damper operates from 41 F to 104 F (5 C to 40 C), so closing behavior stays consistent in typical kitchen, bath, and shop environments.
How is the door position adjusted with this Sensys hinge?
The hinge offers integrated overlay adjustment of plus 2 mm to minus 2 mm, depth adjustment of plus 3 mm to minus 2 mm, and height adjustment at the mounting plate for precise alignment.
Choose This Sensys Hinge For Controlled Cabinet Motion
The Hettich Sensys 9073622 soft-close concealed hinge brings zero protrusion geometry, a 110 degree opening angle, and integrated Silent System damping into one hinge body, all in nickel plated steel. With defined door thickness range, 12.8 mm cup depth, and three-way adjustment across overlay, depth, and height, it supports accurate alignment and consistent motion in face-frame and frameless cabinets. For projects where efficient storage use, dependable soft closing, and EN 15570, Level 3 performance are priorities, this hinge is a strong match for the hardware schedule.
