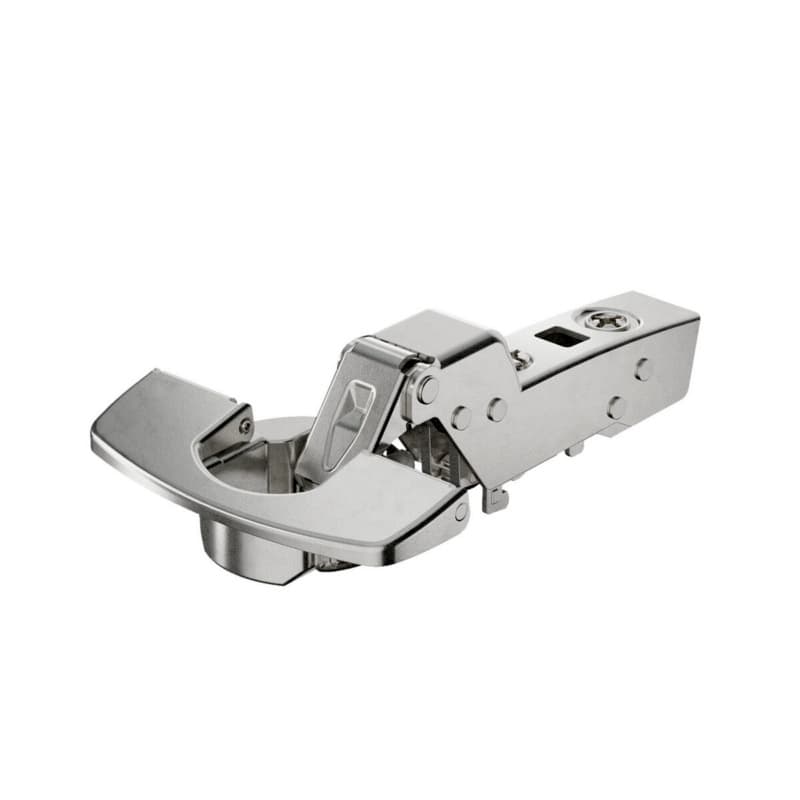

Sensys Concealed Cabinet Hinge For Precise Doors

Sensys concealed cabinet hinge is a zero protrusion concealed hinge that keeps hardware out of the storage area, so shelves and pull-outs can run tight to the door line without collision. As a concealed cabinet hinge in nickel-plated steel, it stays out of sight while providing the structural support needed for everyday door use in cabinetry. The wide automatic closing angle of 35 degrees pulls the door reliably into the closed position, which helps doors sit consistently without repeated tweaking. Its soft-close Silent System is built into the hinge, so closing is controlled at the hinge point. The temperature stable damper is specified for the range 41 F to 104 F (5 C to 40 C), which means the soft-close behavior remains consistent in typical indoor shop and home environments.

Key Sensys Hinge Details For Working Installers

• The wide automatic closing angle of 35 degrees draws the door into the frame early, which reduces the need for perfect hand pressure on every close and helps doors line up uniformly across a run of cabinets.
• The temperature stable damper rated from 41 F to 104 F (5 C to 40 C) keeps the soft-close action predictable in heated or air-conditioned spaces, so door motion feels the same from season to season on the jobsite.
• Silent System soft-close built into the hinge controls final door travel, which reduces door impact on the cabinet front and supports quieter operation in kitchens, baths, or workrooms.
• The hinge body made from steel nickel plated gives a robust metal construction with a nickel surface that coordinates with other nickel hardware and stands up to normal cabinet interior conditions.
• Quality classification under EN 15570, Level 3, indicates the hinge is designed for demanding use cycles, which matters on frequently used cabinet doors in residential or commercial projects.

Mounting And Adjustment For Sensys 110 Degree Hinge

This Sensys 110 degree hinge uses a cup depth of 12.8 mm, which fits standard euro-hinge boring while leaving material around the cup on typical cabinet doors. The design is specified for door thickness from 15 mm to 24 mm, so it covers many common cabinet door builds in plywood, MDF, or solid stock within that thickness range. Integrated overlay adjustment of plus 2 mm / minus 2 mm allows lateral fine-tuning at the hinge, helping align reveals between doors without re-boring. Integrated depth adjustment of plus 3 mm / minus 2 mm gives front-to-back positioning at the hinge arm, which helps achieve a consistent gap to the cabinet front or frame. Height adjustment is handled at the mounting plate, so vertical fine-tuning happens on the plate connection while the hinge cup stays fixed in the door.

Using The Hettich Sensys 9073628 In Cabinet Runs

Where This Sensys Zero Protrusion Hinge Fits Best

This Sensys hinge is described as a zero protrusion concealed hinge, so it is suited to cabinet interiors where shelves or pull-outs need to clear the open door edge. As a concealed cabinet hinge in the European standard hinge class, it works in applications where a clean exterior face and hidden hardware are priorities. The soft-close Silent System integrated into the hinge supports use in living spaces, work areas, or offices where quieter door movement is preferred during regular access. With a 110 degree opening angle, the hinge opens the door wide enough for typical cabinet access while still maintaining the zero protrusion characteristic stated for Sensys hinges. The door thickness range of 15 mm to 24 mm means the hinge is appropriate across many casework programs using metric or fractional door materials that fall in that band.

Why Sensys Adjustments Support Repeatable Alignments

The integrated overlay adjustment of plus 2 mm / minus 2 mm allows lateral shifting at the hinge arm, which is useful during installation to line up a bank of doors without moving the cup drilling layout. The integrated depth adjustment of plus 3 mm / minus 2 mm provides front-to-back control at the hinge, so the door can be moved closer to or further from the cabinet front to dial in consistent reveals. Height adjustment executed at the mounting plate lets the installer adjust vertical door position on the plate, keeping the door boring fixed while still correcting small layout differences along a cabinet run. The automatic closing angle of 35 degrees assists repeatable alignment by pulling the door into the same closed position each time, which helps maintain a straight visual line across multiple cabinet fronts. With quality classification under EN 15570, Level 3, the hinge is specified for demanding use, which supports long-term stability of these adjustments under frequent opening and closing.

Common Questions About The Sensys 110 Degree Hinge

Selecting This Sensys Hinge For Cabinet Projects

This Hettich Sensys 110 degree concealed cabinet hinge in nickel-plated steel combines zero protrusion design, soft-close Silent System, and integrated three-way adjustment, so it supports precise alignment and quiet operation across cabinet runs. With a 12.8 mm cup depth, a door thickness range of 15 mm to 24 mm, and EN 15570 Level 3 classification, it aligns with modern European-style construction where durability and clean lines are important. Choosing this hinge for new installations or upgrades helps deliver consistent door motion and appearance across kitchens, baths, and other casework projects.
