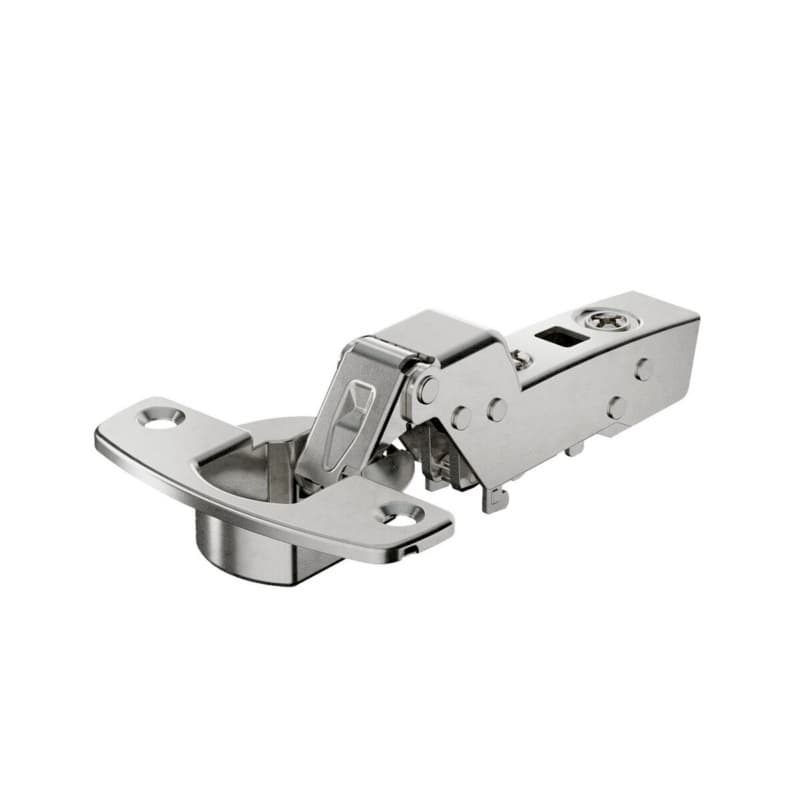

Hettich Sensys soft close hinge is a concealed cabinet hinge that delivers a zero protrusion design, keeping the hinge arm out of the storage area so shelves and pull-outs use more of the available space. The 110 degree opening angle lets doors swing wide enough for clear cabinet access while staying within a typical cabinet reveal. The built-in Silent System uses a soft-close mechanism so doors slow down gently as they close, which helps reduce slamming wear on the cabinet and door. This hinge belongs to the Sensys series in steel nickel plated, giving a consistent appearance and familiar performance across matching installations. As a concealed cabinet hinge, it stays hidden when the door is shut, supporting a clean cabinet look in both face frame and frameless work.
This Sensys concealed cabinet hinge installs as a screw-on type, giving a direct mechanical connection between hinge, door, and mounting plate for a solid setup. The hinge cup depth of 12.8mm defines the boring depth in the door, which helps plan tooling and door thickness. For door thickness from 15 to 24mm, the hinge geometry and cup are designed to position the pivot correctly in that range. Integrated overlay adjustment of plus 2mm to minus 2mm allows side-to-side door positioning after mounting, helping align reveals on face frame or frameless cabinets. Integrated depth adjustment of plus 3mm to minus 2mm fine-tunes the door in and out relative to the cabinet front, which is useful when doors need to sit flush with adjacent fronts.
This Sensys concealed cabinet hinge is identified as an inset overlay option for face frame and frameless cabinets, so it suits projects where the door position must coordinate with both styles. In face frame applications, the hinge design supports doors that sit within the frame opening, so the zero protrusion feature helps retain storage depth behind the door. On frameless cabinets, the same hinge geometry lets the door interact correctly with the cabinet side, so one hinge style can serve mixed layouts in a shop or jobsite. The 110 degree opening angle provides enough travel for access to interior hardware or stored items without demanding special cabinet clearances. Because the hinge is part of the Hettich Sensys range, it aligns with other Sensys components when building uniform cabinet runs.
The integrated overlay adjustment of plus 2mm to minus 2mm provides side-to-side movement at the hinge, which helps line up gaps between neighboring doors after they are hung. This adjustability assists when face frame openings or cabinet sides vary slightly from plan, because the door position can be corrected at the hinge rather than reworking the case or door. Integrated depth adjustment of plus 3mm to minus 2mm shifts the door toward or away from the cabinet front, supporting an even front plane across multiple doors and drawers. Height adjustment is handled at the mounting plate, so installers can fine-tune vertical gaps between doors using the plate connection instead of altering hinge cup boring. Combined with the wide automatic closing angle of 35 degrees, these adjustments help each door close smoothly into the same final position, reducing callbacks related to door alignment and closing behavior.
The Hettich 9073619 is a Sensys concealed cabinet hinge, so it mounts inside the door and cabinet while staying hidden when the door is closed.
The hinge offers a 110 degree opening angle, giving good access to cabinet interiors while staying within typical cabinet spacing layouts.
The hinge Silent System uses a soft-close damper so doors slow near the end of travel, reducing slamming impact on doors and cabinet fronts.
The hinge is specified for door thickness from 15 to 24mm, so doors in that range position correctly on the hinge cup and arm.
Integrated overlay adjustment plus 2mm to minus 2mm and depth adjustment plus 3mm to minus 2mm let installers fine-tune door gaps and front alignment.
The EN 15570 Level 3 classification indicates the hinge meets a high performance class for concealed hinges used in demanding cabinet applications.
The Hettich Sensys soft close hinge with screw-on installation gives a concealed cabinet hinge solution that matches face frame and frameless layouts using one part number. The zero protrusion design supports interior storage planning, while the 110 degree opening angle and 35 degree automatic closing range help doors operate predictably. With integrated overlay and depth adjustments plus height adjustment at the mounting plate, this hinge allows detailed door alignment after mounting. For projects needing soft-close action from 41 F to 104 F with a tested EN 15570 Level 3 hinge, this steel nickel plated Sensys 9073619 is a practical fit.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9072540 Mfr# 9072540 | Opening Angle Limiter for Sensys 110˚ Hinge, White |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
