Sensys Thick Door Hinge For Soft-Close Cabinets

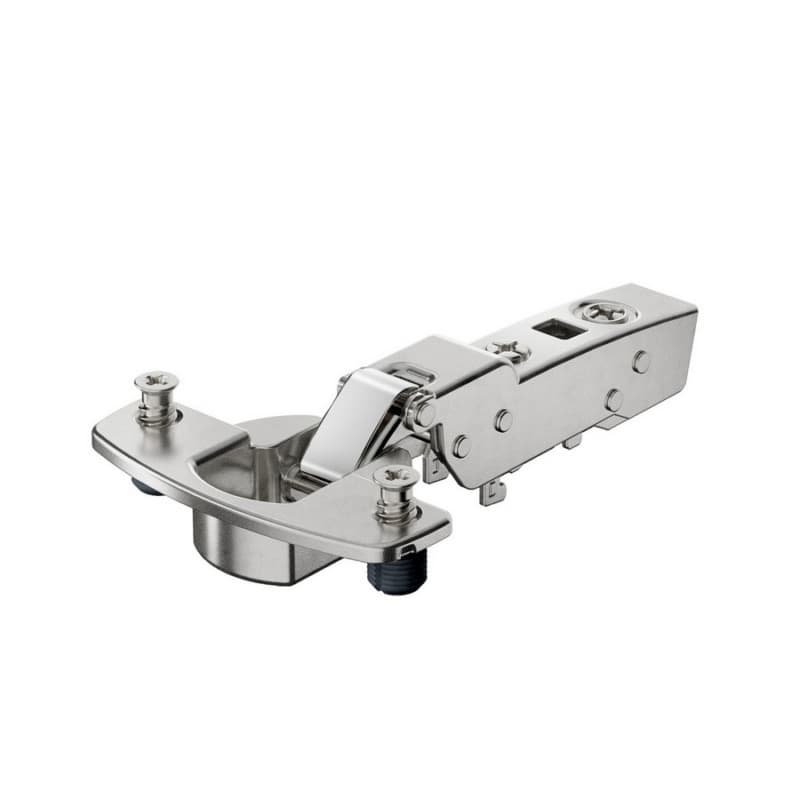

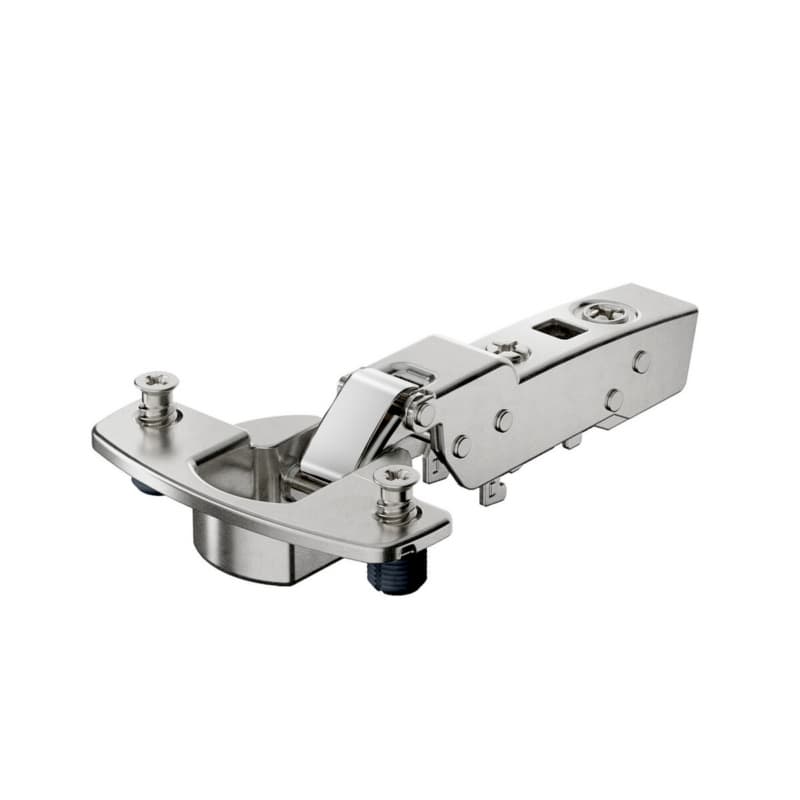

Sensys thick door hinge is a concealed cabinet hinge designed for thicker doors where a clean look and smooth closing are required. The hinge belongs to the Sensys 8631i series and uses an integrated Silent System with a self-closing feature, so the door is pulled shut in a controlled way, which helps reduce impact on the cabinet and door over time. It provides an opening angle of 95 degrees, giving good access into the cabinet while still keeping the door within a manageable swing range on face-frame or frameless runs. The hinge is specified for door thickness from 15 mm to 32 mm, so it covers standard cabinet doors as well as thicker fronts often used in high-end work. As a concealed cabinet hinge in nickel plated steel, it supports a modern appearance while the long arm style stays hidden from the exterior.

Key Sensys Thick Door Hinge Job Benefits

• The hinge is engineered for door thickness from 15 mm to 32 mm, so a single hinge type can serve both standard and thicker cabinet doors in the same project, simplifying layout and part selection across a job.
• The integrated Silent System with self-closing feature means the Sensys 8631i hinge controls the last part of the door travel, which helps protect door edges and cabinet fronts from hard slams in everyday use.
• An opening angle of 95 degrees gives useful interior access for most cabinet layouts while reducing the chance that the door edge projects too far into walkways, which matters in tight kitchen or shop spaces.
• The door mounting option is overlay, so the hinge is suited to overlay cabinet designs where the door covers part of the face frame or case side, which is a common configuration in both framed and frameless work.
• Quality classification under EN 15570, Level 2 shows that the hinge has been tested to a recognized European standard, which supports consistent performance expectations on jobs that reference this specification.
• The concealed design places the hinge in the European concealed long arm hinge family, which keeps hardware out of sight when the door is closed, helping finished cabinets match modern design preferences.

Mounting And Adjustment Details For Accurate Fit

The hinge uses a drilling pattern TB 45 x 9.5 mm with a cup depth of 12.8 mm, so cup boring can be set up precisely on a line borer or CNC for repeatable production. Installation uses expanding sockets, which allows the hinge cup to lock into the bored hole for a secure hold in the door. Integrated overlay adjustment of plus 2 mm / minus 2 mm lets the door be shifted sideways directly at the hinge, which helps align reveals between doors. Integrated depth adjustment of plus 3 mm / minus 2 mm shifts the door in and out relative to the cabinet front, which is important for flush alignment with adjacent fronts. Height adjustment is handled at the mounting plate, so vertical reveal between doors can be tuned across a run once the hinges are mounted.

Using This Hettich Sensys Hinge In Cabinet Projects

Where The Sensys 95 Degree Thick Door Hinge Fits

This hinge is classified under European concealed long arm hinges and European thick door hinges, so it is suited for cabinet projects that pair a hidden hinge layout with thicker doors. The door thickness range of 15 mm to 32 mm means it supports standard kitchen, bath, and casework doors, as well as thicker fronts often used in custom or commercial installations where a heavier door design is specified. The hinge is identified as a half overlay face-frame and frameless thick door hinge, which means it can be used on face-frame cabinets with a half overlay layout and on frameless cabinets with overlay doors, providing flexibility when a job mixes construction styles. With an opening angle of 95 degrees, the hinge works well on cabinets where full 110-degree swing is not required, helping doors clear the box opening while staying controlled near adjacent walls or appliances.

Why The Sensys Adjustments Support Consistent Results

The integrated overlay adjustment of plus 2 mm / minus 2 mm allows small side-to-side corrections at the hinge, which helps bring door gaps into line without re-boring or shifting the cabinet. Integrated depth adjustment of plus 3 mm / minus 2 mm lets the door position be refined relative to the cabinet face, which supports flush runs when pairing multiple doors or aligning with drawer fronts. Height adjustment at the mounting plate separates vertical tuning from the hinge cup position, so once drilling is set for the TB 45 x 9.5 mm pattern and 12.8 mm cup depth, door height can be aligned along a bank of cabinets by working at the plates. The self-closing feature works with the Silent System so the hinge pulls the door closed and softens the final movement, which can help maintain alignment because doors are brought back to the same closed position after use.

Common Questions About The Hettich 9091446 Hinge

Selecting This Sensys Thick Door Hinge For Your Job

This Hettich Sensys thick door hinge, manufacturer part 9091446, combines a 95 degree opening angle, door thickness range of 15 mm to 32 mm, and integrated Silent System to handle soft-closing thick doors in face-frame or frameless cabinet work. With TB 45 x 9.5 mm drilling, 12.8 mm cup depth, and integrated overlay and depth adjustments plus height adjustment at the mounting plate, it supports precise setup and clean alignment across a run of cabinets. For projects that call for a concealed European thick door hinge in nickel plated steel, this Sensys hinge layout provides a clear, spec-driven option.
