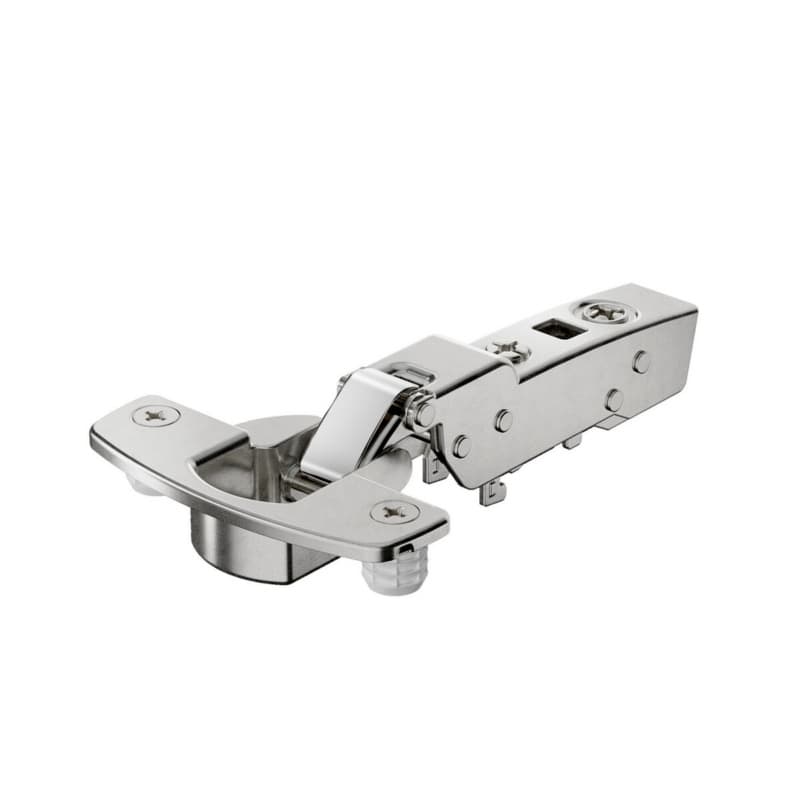

Hettich Sensys Soft-Close Silent System Half Overlay Face-Frame;Frameless Thick Door Hinge Nickel, 95° Dowel - 9091441

Sensys Thick Door Hinge For 15-32 mm Doors

Sensys thick door hinge is a concealed cabinet hinge designed for thicker doors in both face-frame and frameless applications, so it handles projects where standard European hinges do not fit the required door thickness. This Hettich America Corporation hinge is part of the Sensys 8631i line, which ties it into a family of European concealed long arm hinges used across many cabinet builds. The opening angle of 95 degrees allows doors to swing wide enough for normal cabinet access while keeping the door controlled within that range. Its door thickness range of 15 to 32 mm lets installers use it on medium to thick doors without changing hinge type across that span. The door mounting option is overlay, so the door covers the cabinet front, matching typical kitchen and casework layouts that use overlay construction.

Key Sensys Hinge Details That Support The Job

• The hinge is classified under EN 15570, Level 2, which signals performance tested to an industry standard that matters on projects where documented hinge classification is required.
• Integrated Silent System provides soft-close function, so the door decelerates at the end of travel and helps reduce slam noise on everyday cabinet use.
• A self-closing feature built into the Sensys 8631i design pulls the door closed near the end of the swing, which helps keep doors properly shut without extra catches.
• The hinge cup depth is 12.8 mm, so the cup drilling can be planned consistently and still work within standard door construction for the specified thickness range.
• Nickel plated steel construction gives the hinge a metal body with a plated finish, which supports a consistent look with other nickel hardware in the project.

Hettich Sensys 95 Degree Hinge Adjustment And Fit

This Hettich Sensys thick door hinge uses a drilling pattern of TB 45 x 9.5 mm, which sets the cup hole position for repeatable boring on multiple doors. Installation with expanding sockets lets the hinge be secured in the cup, supporting a press-in style workflow on production or shop equipment. Integrated overlay adjustment of plus 2 mm to minus 2 mm allows the door overlay to be shifted at the hinge, helping fine-tune reveals between doors and cabinet sides. Integrated depth adjustment of plus 3 mm to minus 2 mm moves the door in and out relative to the cabinet front, which helps align the door plane across a run of cabinets. Height adjustment is done at the mounting plate, giving vertical movement so doors can be leveled relative to each other on the cabinet.

Using This Concealed Thick Door Hinge In Cabinets

Where This Sensys Thick Door Hinge Works Best

This Sensys 95 degree thick door hinge is specified for concealed cabinet applications that call for a European thick door hinge with overlay mounting. Its classification as a European concealed long arm hinge places it in projects where a hidden hinge is preferred, such as kitchen, bath, or furniture casework using overlay doors. The door thickness capability from 15 to 32 mm lets it serve on standard to thick doors without changing to a different hinge type as door construction varies within that range. Because it is a half overlay hinge for both face-frame and frameless cabinets, it can be used across different cabinet box designs while keeping the same hinge model for consistent motion and appearance.

Why Sensys 95 Degree Details Support Consistent Results

The 95 degree opening angle defines how far the door swings, which helps keep adjacent doors or walls in mind when laying out cabinets in tight spaces. Integrated Silent System soft-close within the hinge means the damping is built into the hinge body, so there is no extra external damper to align when adjusting doors. The self-closing action of the Sensys 8631i hinge geometry pulls the door fully shut, which helps doors stay closed even when cabinets are used frequently. Integrated overlay and depth adjustments at the hinge allow most side and in-out correction to be handled without altering the cup position, saving time when dialing in final alignment. Height adjustment at the mounting plate separates vertical positioning from the hinge arm settings, making it easier to line up doors across multiple cabinets. The nickel plated steel material matches many contemporary cabinet hardware finishes, supporting a coordinated appearance where hinge components are visible when doors are open.

Common Questions About The Sensys 95 Degree Hinge

Selecting The Sensys Thick Door Hinge For Your Project

The Hettich 9091441 Sensys thick door hinge brings a 95 degree opening angle, integrated Silent System, and self-closing function together for overlay cabinet doors. Its door thickness range of 15 to 32 mm, TB 45 x 9.5 mm drilling pattern, and 12.8 mm cup depth support consistent boring and fit across multiple doors. Integrated overlay and depth adjustment at the hinge, combined with height adjustment at the mounting plate, give the fine-tuning control needed on face-frame and frameless cabinets. For projects specifying a European concealed long arm hinge in nickel plated steel with documented EN 15570 Level 2 classification, this concealed cabinet hinge provides the tested details required for thick door applications.
