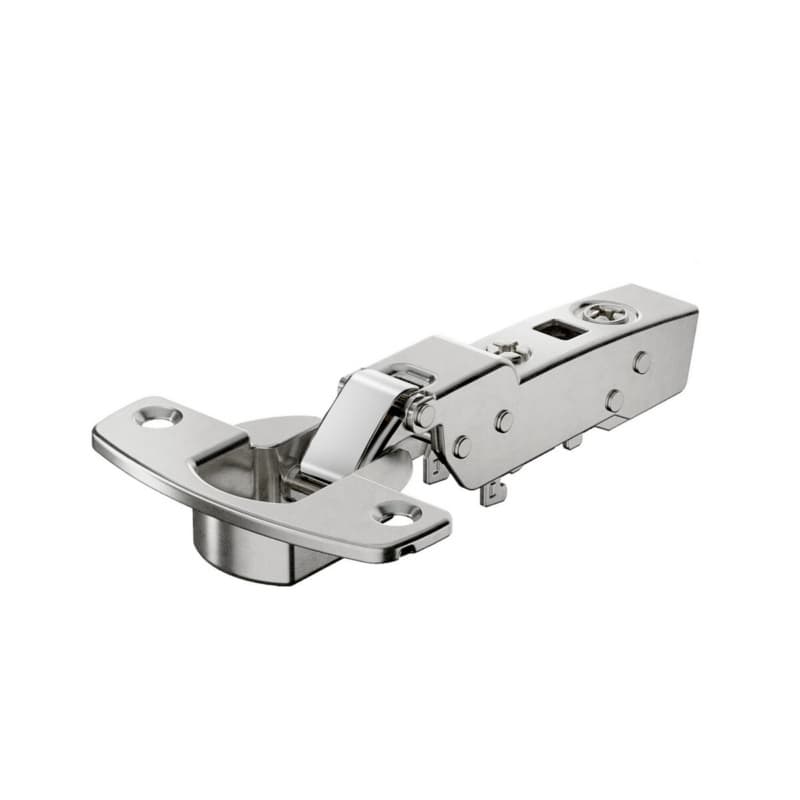

Sensys Thick Door Hinge For Quiet Cabinet Doors

Sensys thick door hinge is a concealed cabinet hinge designed for thick doors, so it supports projects where standard hinges do not handle increased door thickness well. The hinge is part of the Hettich Sensys range, which provides an integrated Silent System with a self-closing feature, so doors pull shut smoothly without separate closing devices. An opening angle of 95 degrees lets the door swing wide enough for comfortable access while still controlling the door path in tight runs of cabinets. The hinge is rated under EN 15570, Level 2 quality classification, which indicates it is built for cabinet applications that need dependable, repeatable performance over time. As a concealed hinge, it keeps hardware hidden when the door is closed, giving casework a clean appearance while still delivering controlled, soft-closing action.

Key Sensys Hinge Details That Support The Job

• The hinge handles door thickness from 15 to 32 mm, so it works on thin to thick cabinet doors without changing to a different hinge style across a run.
• The integrated Silent System with self-closing function brings the door closed, which helps reduce slamming and improves the feel of higher-end installations.
• A 95 degree opening angle gives enough swing for easy cabinet access while helping control interference with nearby doors, walls, or appliances.
• The TB 45 x 9.5 mm drilling pattern standardizes cup hole layout, so boring operations can be repeated quickly and accurately across multiple doors.
• A cup depth of 12.8 mm keeps the hinge seating consistent in the door, which helps maintain stable overlay and alignment across the cabinet front.
• Installation with expanding sockets secures the cup in the door material, which supports a solid hinge connection during regular use.

Hettich Sensys Soft-Close Hinge Adjustment And Fit

The Hettich Sensys soft-close hinge provides integrated overlay adjustment of plus 2 mm to minus 2 mm, so the door edge can be shifted side-to-side on the cabinet to fine-tune gaps. The hinge also offers integrated depth adjustment of plus 3 mm to minus 2 mm, which lets the door move in and out relative to the cabinet front for a better reveal line. Height adjustment is handled at the mounting plate, so vertical door position can be dialed in along the cabinet side or face frame without re-boring the door. Together, these adjustments give a fitter the range to correct variations in drilling or carcass construction and still bring doors into a consistent plane for a clean front.

Using This Thick Door Cabinet Hinge In Real Projects

Where This Half Overlay Hinge Is Applied

This thick door cabinet hinge is specified for door mounting in overlay configurations, so the door sits over the cabinet side or face rather than inset. Its half overlay face-frame and frameless suitability means it can be used on both face-frame cabinets and frameless cabinets that carry thicker doors within the 15 to 32 mm range. As a concealed cabinet hinge, it sits in a bored cup in the door and on a mounting plate at the cabinet, so the hardware is hidden when doors are closed while still allowing full function when opened to 95 degrees. The nickel plated steel material and finish place the hinge within the typical cabinet hardware palette, so it visually coordinates with other nickel plated components when the interior is visible.

How Sensys Adjustments Help Achieve Consistent Results

The integrated overlay adjustment of plus 2 mm to minus 2 mm lets an installer refine how far the door overlays the cabinet front, which helps keep reveal lines even across banks of doors. Depth adjustment of plus 3 mm to minus 2 mm allows the door to sit flush with neighboring fronts by moving it toward or away from the cabinet, which is useful when carcass construction or door thickness varies within the 15 to 32 mm range. Height adjustment at the mounting plate provides vertical tuning without altering the door drilling, so doors can be aligned along the top and bottom edges after the hinges are mounted. The TB 45 x 9.5 mm drilling pattern and 12.8 mm cup depth also support repeatable boring operations, which shortens setup time on the bench and helps multiple doors hang consistently on the same run of cabinets.

Common Questions About This Sensys Thick Door Hinge

Selecting This Hinge For Thick Cabinet Doors

This thick door cabinet hinge from Hettich America Corporation combines a 15 to 32 mm door capacity, 95 degree opening angle, and integrated Silent System with self-closing, so it supports upgraded cabinet doors that need controlled, quiet closing. With overlay, depth, and height adjustments plus a standardized TB 45 x 9.5 mm drilling pattern and 12.8 mm cup depth, it helps installers bring thick doors into accurate alignment on face-frame or frameless cases. For projects that specify nickel plated steel concealed cabinet hinges with soft-close performance, this Sensys 9091440 model provides a focused option for thick door applications.
