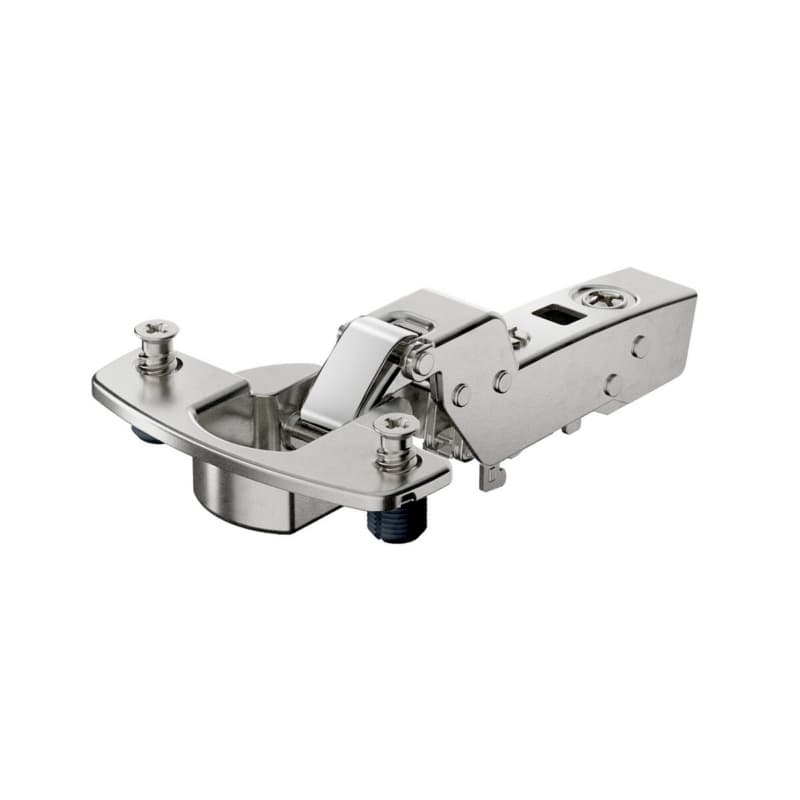

Sensys thick door hinge is a concealed cabinet hinge built for thicker doors in cabinet projects that need a soft, controlled close. The hinge is designed for door thickness from 15 to 32 mm, so it supports standard and heavy doors in the same run of cabinets. A 95 degree opening angle lets the door open wide enough for comfortable access while still controlling the swing in tight cabinet layouts. The hinge belongs to the Sensys 8631i series with an integrated Silent System, which slows the closing movement and supports quiet operation in everyday use. The hinge is a long arm European concealed hinge in nickel plated steel, so the hardware stays out of sight and maintains a consistent finish inside the cabinet. As a concealed cabinet hinge, it suits frameless construction and other applications where clean exterior lines matter.
The hinge uses installation with expanding sockets, so the cup fixes into prepared bores using those sockets for a secure hold in the door. Integrated overlay adjustment of plus 2 mm to minus 2 mm lets the door position be shifted sideways relative to the cabinet front after mounting. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door move in and out from the cabinet side, helping align reveals. Height adjustment takes place at the mounting plate, so vertical door gaps can be tuned without remachining the door or cabinet. Together, these adjustments let the installer fine-tune gaps and alignment on site using the hinge mechanisms.
This hinge is a European concealed cabinet hinge in the Sensys 8631i line, so it is intended for concealed mounting on cabinet doors that benefit from soft closing. The hinge fits doors with thickness from 15 to 32 mm, which supports use on standard kitchen doors as well as thicker decorative doors within the same project. Its door mounting option overlay is suited to overlay door layouts where the door covers the cabinet side. The 95 degree opening angle allows cabinet doors to open to a working position that provides access to contents while staying within that angle limit, which can be important in corners and near walls. As a hinge classified under EN 15570, Level 2, it meets that quality classification level, which defines performance characteristics within that standard. Since the hinge belongs to the category of European thick door hinges and concealed cabinet hinges, it serves cabinet applications needing concealed hardware on thicker door designs.
The integrated Silent System with self-closing feature means the hinge itself manages the final closing movement, which helps doors close in a controlled way without separate closing devices. Integrated overlay adjustment of plus 2 mm to minus 2 mm lets small differences in door sizing or drilling be corrected at the hinge, supporting uniform reveals across a bank of doors. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door sit flush or be brought closer to the cabinet side, which is important for aligning faces and keeping a consistent front line. Height adjustment at the mounting plate puts vertical tuning at the plate interface, so doors can be raised or lowered relative to the cabinet without altering machining. The TB 45 x 9.5 mm drilling pattern and 12.8 mm cup depth give fixed values for door preparation, which supports efficient production machining and consistent hinge seating. Nickel plated steel construction combines a steel hinge body with a nickel plated surface, which suits interior cabinet conditions where metal stability and a clean finish are needed over time.
The hinge supports door thickness from 15 to 32 mm, which covers standard cabinet doors as well as thicker designs within that dimension range.
The hinge has a 95 degree opening angle, which provides good cabinet access while limiting door swing in tighter installations.
The integrated Silent System slows and completes the door closing movement, which supports quiet, controlled closing without separate dampers.
The hinge uses a TB 45 x 9.5 mm drilling pattern with a 12.8 mm cup depth, which defines the boring layout and depth on the door.
The hinge is installed with expanding sockets in the door, which secure the hinge cup into the prepared bores.
The hinge provides integrated overlay and depth adjustment at the hinge, with height adjustment at the mounting plate, supporting precise door alignment.
This Hettich Sensys soft-close concealed cabinet hinge pairs a 15 to 32 mm door thickness range with a 95 degree opening angle, integrated Silent System, and multi-directional adjustment. For cabinet projects using thicker overlay doors, it offers defined drilling values and on-hinge adjustments that support consistent alignment. When you need a nickel plated steel European thick door hinge that handles soft closing and on-site tuning in one unit, this model delivers those functions in a concealed format.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
