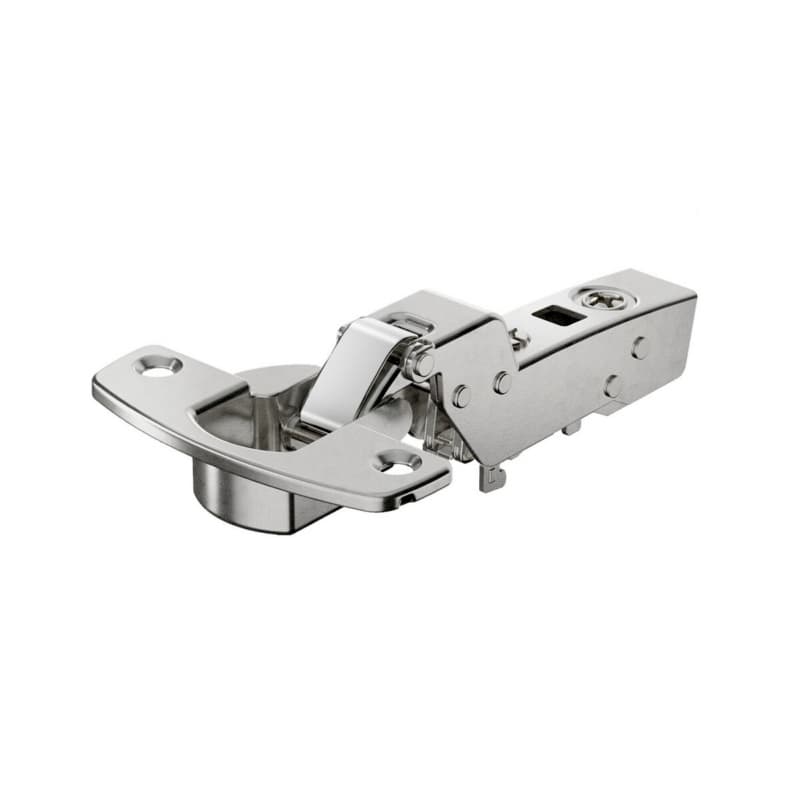

Sensys Thick Door Hinge 9091450 For Cabinet Doors
Sensys thick door hinge 9091450 is a European concealed cabinet hinge designed for thick doors in the 15 to 32 mm range, so it covers standard and heavy doors in one hardware choice. The integrated Silent System provides soft-close action, which slows the door near closing to help reduce slamming on face-frame or frameless cabinets. A self-closing feature pulls the door shut from a small opening angle, supporting consistent alignment in everyday use. The 95 degree opening angle gives access to the cabinet interior while keeping the door from swinging excessively wide around adjacent cabinets. As a concealed long arm hinge in nickel plated steel, it stays out of sight when the door is closed while providing a sturdy mounting point. Quality classification under EN 15570, Level 2, indicates the hinge is tested to a defined performance standard for furniture hinges.
Key Details That Support Thick Door Projects
- The hinge covers door thickness from 15 to 32 mm, which lets one hinge style handle standard cabinet doors and thicker decorative fronts in the same run of cabinets.
- An opening angle of 95 degrees sets a defined swing range that helps keep thick doors from interfering as much with walls, appliances, or adjacent doors in tight layouts.
- The integrated Silent System with self-closing function slows and pulls the door closed, which supports quieter operation and more controlled closing on heavier doors.
- The 12.8 mm cup depth works with the specified door thickness range so the hinge cup can be drilled consistently without cutting too deep into thicker doors.
- Nickel plated steel construction provides a hard-wearing hinge body with a neutral metallic finish that pairs with common cabinet hardware finishes.
- Quality classification under EN 15570, Level 2, ties the hinge to a recognized furniture hinge standard, which supports predictable performance in residential and commercial cabinetry.
Hettich Sensys Thick Door Hinge Mounting And Adjustment
This Hettich Sensys thick door hinge uses a drilling pattern of TB 45 x 9.5 mm, so the cup hole position is clearly defined for repeatable boring across multiple doors. The hinge cup depth of 12.8 mm means installers can set boring depth to that value and run a consistent process on thick and standard doors in the 15 to 32 mm range. Installation uses expanding sockets, which lock into the drilled cup holes to secure the hinge to the door. Door mounting is described as overlay, so the door overlays the cabinet front while using this hinge geometry. Integrated overlay adjustment of plus 2 mm to minus 2 mm allows lateral shifting of the door position on the cabinet, which helps fine-tune reveals. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door be set closer to or further from the cabinet front for alignment. Height adjustment is handled at the mounting plate, so vertical gaps can be set after the hinge is attached.
Using Sensys 95 Degree Hinge In Real Cabinet Work
Where This European Concealed Thick Door Hinge Fits
This European concealed long arm hinge is specified for door thickness from 15 to 32 mm, so it fits standard panel doors and thicker fronts in kitchens, baths, or built-ins that use heavy profiles. Because the hinge is a concealed cabinet hinge, it sits inside the cabinet and the door, which keeps hardware out of sight on frameless or face-frame installations described in the product name. The opening angle of 95 degrees gives enough swing to access cabinet interiors while controlling how far a thicker door projects, which can help near corners or appliances. The door mounting option listed as overlay indicates the door overlays the cabinet front when this hinge is used, aligning with many modern cabinet layouts. As part of the Sensys line with integrated Silent System and self-closing, the hinge brings soft-close behavior to these thicker or standard doors in a coordinated hardware system.
Adjustment Range That Supports Consistent Door Lines
The integrated overlay adjustment of plus 2 mm to minus 2 mm allows the door edge to move sideways relative to the cabinet, which is useful for dialing in even reveals when multiple doors share a face-frame or sit on a frameless run. Depth adjustment of plus 3 mm to minus 2 mm lets the installer set how closely the door face sits to the cabinet front, which can help align doors with adjacent panels, applied ends, or neighboring cabinets that share the same plane. Height adjustment is specified at the mounting plate, so vertical gaps at the top and bottom of each door can be corrected after the hinges are fixed to the door, supporting fast fine-tuning. The TB 45 x 9.5 mm drilling pattern and 12.8 mm cup depth give fixed geometry that matches boring jigs and CNC routines, which supports repeatable hinge placement project after project. Together with the integrated Silent System and self-closing function, these adjustments let the Sensys 95 degree thick door hinge 9091450 support consistent door alignment and controlled closing on cabinets built with 15 to 32 mm doors.
Common Questions About Sensys 95 Degree Thick Door Hinge
What door thickness range does the Sensys 9091450 hinge handle?
The Sensys thick door hinge 9091450 is specified for door thickness from 15 to 32 mm, so it covers both standard cabinet doors and thicker panels in one hinge model.
How far does this Sensys hinge allow the cabinet door to open?
The Sensys 95 degree thick door hinge has an opening angle of 95 degrees, giving good interior access while helping limit how far a thicker door swings into nearby surfaces.
Does the Sensys thick door hinge provide soft close action?
The Sensys thick door hinge has an integrated Silent System with a self-closing feature, so it slows the door near closing and then pulls it shut for controlled, quiet movement.
What drilling pattern and cup depth are required for this hinge?
The Sensys 9091450 hinge uses a TB 45 x 9.5 mm drilling pattern with a cup depth of 12.8 mm, which defines boring layout and depth on doors from 15 to 32 mm thick.
How is overlay and depth adjusted on this Sensys hinge?
The hinge provides integrated overlay adjustment of plus 2 mm to minus 2 mm and depth adjustment of plus 3 mm to minus 2 mm, helping refine door position horizontally and in-out.
What material and finish are used on the Sensys 95 degree hinge?
The Sensys 95 degree thick door hinge 9091450 is made from nickel plated steel, providing a robust hinge body with a neutral metallic finish for cabinet interiors.
Select Sensys Thick Door Hinge 9091450 For Your Build
The Sensys thick door hinge 9091450 combines 15 to 32 mm door capacity, 95 degree opening, and soft-close Silent System, so one concealed hinge style can handle many cabinet doors on a project. Integrated overlay, depth, and height adjustments support clean reveals and consistent alignment, while the TB 45 x 9.5 mm drilling pattern with 12.8 mm cup depth fits structured boring setups. Nickel plated steel construction and EN 15570, Level 2 classification tie this hinge to recognized hardware standards for concealed cabinet hinges. Use this Sensys 95 degree thick door hinge wherever a European concealed long arm hinge is needed for thicker overlay doors.
