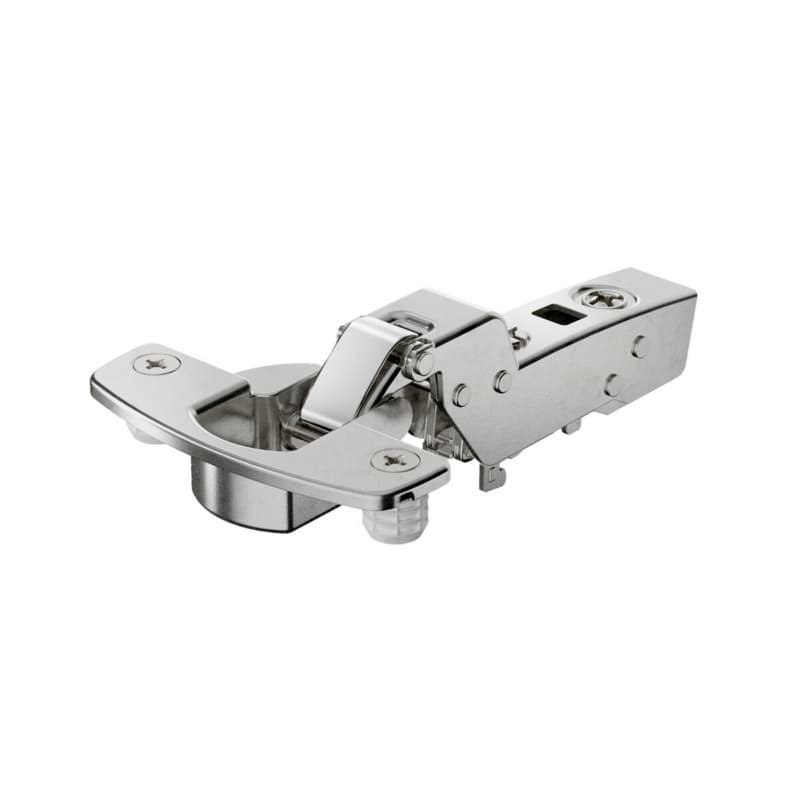

Sensys Thick Door Hinge For 15-32 mm Doors

Sensys thick door hinge gives cabinetmakers a concealed hinge solution for thicker doors from 15 to 32 mm, so oversized or heavy fronts can be hung within the specified range without changing to a different hinge family. The hinge is designed for inset overlay applications on both face-frame and frameless cabinets, which lets one hinge part number cover common construction methods in the shop. An opening angle of 95 degrees provides wide access into the cabinet while still controlling the swing, which helps with clearance planning near adjacent cabinets or walls. The nickel plated steel construction creates a robust hinge arm and cup, which supports long-term use in normal cabinet environments. Quality classification under EN 15570, Level 2, indicates that the hinge meets a recognized performance standard, which matters on multi-door runs or higher-use installations.

Key Sensys Thick Door Hinge Work Advantages

• The specified door thickness range of 15 to 32 mm lets installers use thicker doors within this band, which simplifies design when stepping up from standard fronts while keeping hinge geometry consistent.
• The 95 degree opening angle gives doors ample swing for access to the cabinet interior, which aids hardware clearance and reduces interference with adjacent components in tight layouts.
• The cup depth of 12.8 mm keeps the cup drilling relatively shallow for a thick door hinge, which preserves material behind the cup and supports screw holding in the door.
• The drilling pattern TB 45 x 9.5 mm defines the cup hole position, which helps CNC programming and template setup stay consistent across similar Hettich hinge runs.
• The nickel plated steel material provides a hard-wearing hinge surface, which supports repeated motion cycles in kitchen, bath, or casework use where doors are operated frequently.
• Quality classification under EN 15570, Level 2, confirms the hinge has been performance tested, which supports its use in projects where hardware standards and repeatable results are important.

Installation Details For Sensys 95 Degree Hinge

The hinge uses installation with expanding sockets, so the cup fixes into the door by expansion instead of only traditional screw engagement, which can speed installation once the boring pattern is dialed in. The cup depth of 12.8 mm means the boring operation removes a controlled amount of material, which helps maintain door integrity on thicker slabs. The TB 45 x 9.5 mm drilling pattern standardizes the distance from the edge and spacing of holes, which simplifies jig selection and repeatable boring on production equipment. Height adjustment is handled at the mounting plate, which allows vertical alignment of the door after hanging. Integrated overlay adjustment of plus 2 mm to minus 2 mm and integrated depth adjustment of plus 3 mm to minus 2 mm let the installer move the door side-to-side and in-out at the hinge, which reduces time spent reboring or shifting plates.

Using The Hettich 9091451 Hinge In Projects

Where This Soft Close Thick Door Hinge Fits

The hinge is a concealed cabinet hinge in the European long arm style, which suits frameless cabinets and face-frame cabinets needing a clean exterior. Its design for inset overlay on both face-frame and frameless construction lets the same hinge serve different casework builds, which is useful in shops handling mixed construction runs. The specified door thickness range of 15 to 32 mm means it is suited to thicker fronts such as heavy solid wood or layered panels that fall inside this band. The integrated Silent System with self-closing feature is built into the hinge, which lets doors close gently once brought toward the cabinet and reduces slamming in day-to-day use. The 95 degree opening angle supports access to cabinet interiors while controlling door projection into the room, which is helpful on runs where doors open toward corners, appliances, or passageways.

Adjustment Features That Support Clean Results

The integrated overlay adjustment of plus 2 mm to minus 2 mm allows small lateral corrections at the hinge, which helps line up reveals between adjacent doors without altering the boring pattern. Integrated depth adjustment of plus 3 mm to minus 2 mm provides in-and-out movement of the door relative to the cabinet front, which lets installers fine-tune how flush the door sits along a run. Height adjustment at the mounting plate gives vertical movement, which is useful for aligning top and bottom edges across multiple doors after the hinges are fixed. Together, these three adjustment axes allow the door position to be refined without moving the cup hole, which is important on thick doors where reboring would remove significant material. The nickel plated steel construction supports these adjustments holding their setting during regular operation. Quality classification under EN 15570, Level 2, indicates that the hinge has been evaluated under a European test method, which supports confidence when using it in multi-hinge, multi-door installations.

Common Questions About Sensys Thick Door Hinge

Selecting The Sensys 95 Degree Hinge For Thick Doors

The Sensys thick door hinge with integrated Silent System and self-closing feature gives cabinet builders a concealed hinge option purpose-built for 15 to 32 mm doors. Its 95 degree opening angle, EN 15570 Level 2 classification, and nickel plated steel construction support dependable performance on face-frame or frameless cases within its application range. Integrated overlay, depth, and height adjustments provide the fine control needed to dial in reveals and flushness after boring. For projects specifying a Hettich America Corporation concealed hinge with these parameters, this Hettich 9091451 hinge aligns with the documented performance and adjustment capabilities.
