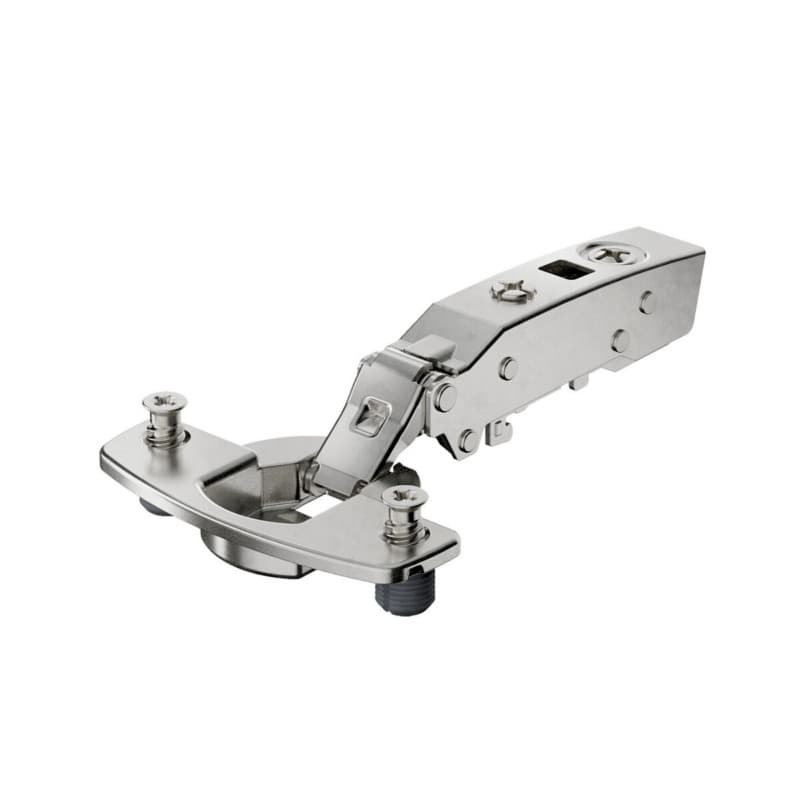

Hettich Sensys soft-close hinge is a concealed cabinet hinge that provides a zero protrusion design, so interior storage space can be used more efficiently when doors are opened inside cabinets. This Sensys hinge is described as a full overlay face-frame;frameless hinge, which lets it serve standard concealed applications on both face-frame and frameless cabinet constructions where full overlay doors are specified. The hinge belongs to the Sensys hinges from Hettich, which are presented as a zero protusion concealed hinge that is perfect for optimum use of storage space, giving installers a compact hinge layout that does not intrude into the cabinet interior. The manufacturer lists this product as a Silent System Sensys thin door hinge for door thickness from 10mm, so it addresses thinner door construction needs while maintaining soft-closing performance.
The Sensys 110 degree concealed hinge design provides a 110 degree opening angle, giving good access into the cabinet while keeping the door movement controlled for typical kitchen and casework layouts. Integrated overlay adjustment of plus 2mm / minus 2mm is built into the hinge, so the door position can be shifted sideways relative to the cabinet for accurate overlay alignment after mounting. The hinge also has integrated depth adjustment of plus 3mm / minus 2mm, which allows the door-to-cabinet gap to be tuned by moving the door closer to or farther from the cabinet front. Height adjustment is provided at the mounting plate, enabling vertical alignment of the door relative to adjacent fronts, so reveals can be evened out during final installation.
This hinge is listed in the category Concealed Cabinet Hinges and European Standard Hinges, so it is aimed at modern European-style concealed installations where the hardware is hidden from view when the door is closed. The product name describes it as a full overlay face-frame;frameless hinge, which means it is suitable for cabinet configurations where the door overlays the cabinet opening fully on either face-frame or frameless boxes. The 110 degree opening angle supports common kitchen, bath, and casework cabinet layouts by allowing doors to open wide enough for access without swinging excessively beyond the cabinet front. Its thin door capability for door thickness 10-19mm supports lighter or slim-front door designs, making it suitable where reduced door thickness is part of the construction plan.
The integrated overlay adjustment of plus 2mm / minus 2mm reduces the need for remounting during alignment because the door position can be shifted laterally on the hinge to dial in exact overlay reveals. Integrated depth adjustment of plus 3mm / minus 2mm lets installers control how the door sits relative to the cabinet front, which helps maintain consistent gaps and avoid door-to-cabinet contact when tuning for soft-close function. Height adjustment at the mounting plate allows vertical positioning of the door without moving the cup holes, which is useful during final fitting when aligning multiple doors along a run of cabinets. The wide automatic closing angle of 35 degrees means that, once within that angle, the hinge pulls the door closed and works with the temperature stable damper in the temperature range 41 F to 104 F (5 C to 40 C) to maintain predictable soft-closing behavior in typical interior environments.
The hinge is described as a full overlay face-frame;frameless hinge, so it is suitable for concealed full overlay use on both face-frame cabinets and frameless cabinet constructions.
The hinge is specified as a 110 degree hinge, which provides a typical wide opening angle for cabinet doors while maintaining controlled movement in everyday operation.
The Silent System Sensys thin door hinge is specified for door thickness from 10mm and is listed for door thickness 10-19mm, covering many thin cabinet door constructions.
The hinge provides integrated overlay adjustment of plus 2mm / minus 2mm, allowing the door to be shifted sideways on the hinge to fine-tune overlay alignment after mounting.
The hinge has a temperature stable damper from 41 F to 104 F (5 C to 40 C), which helps the soft-close action remain consistent across common indoor temperatures.
Cup depth 7.8mm means the hinge requires a relatively shallow cup hole, which supports thin doors by reducing the risk of drilling through the panel during preparation.
This Hettich America Corporation Sensys 110 degree concealed hinge, manufacturer part 9094306, combines zero protrusion design, soft-close Silent System, and integrated three-way adjustment to support precise, concealed full overlay installations on thin doors. For cabinet projects using door thickness 10-19mm and needing a thin door hinge with cup depth 7.8mm, this concealed hinge provides the specified geometry and adjustment functions for accurate alignment in European-style cabinet work.
Sold In: 1 Each
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071668 Mfr# 9071668 | Adjustment Cross Mounting Plate with Euro Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071673 Mfr# 9071673 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 5mm | ||||
Sold in: 1 Each | HT9071658 Mfr# 9071658 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 5mm | ||||
Sold in: 1 Each | HT9071578 Mfr# 9071578 | Adjustment Cross Mounting Plate, Nickel-Plated, Screw-On, 5mm | ||||
Sold in: 1 Each | HT9071628 Mfr# 9071628 | Adjustment Cross Mounting Plate with Euro Screw, Nickel Plated, 5mm | ||||
Sold in: 1 Each | HT9071598 Mfr# 9071598 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 5mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9071650 Mfr# 9071650 | Adjustment Steel Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071645 Mfr# 9071645 | Adjustment Steel Cross Mounting Plate with Euro Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071670 Mfr# 9071670 | Adjustment Steel Cross Mounting Plate with Chipboard Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071655 Mfr# 9071655 | Sensys Cam Adjustment Face Frame Cross Mounting Plate, Nickel-Plated, Dowelled, 0mm | ||||
Sold in: 1 Each | HT9071575 Mfr# 9071575 | Cross Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071585 Mfr# 9071585 | Adjustment Cross Mounting Plate with Locating Pin/Special Screw, Nickel-Plated, 0mm | ||||
Sold in: 1 Each | HT9071625 Mfr# 9071625 | Euro Screw Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9071595 Mfr# 9071595 | Adjustment Cross Mounting Plate with Expanding Socket, Nickel-Plated, 0mm |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9072540 Mfr# 9072540 | Opening Angle Limiter for Sensys 110˚ Hinge, White |
Quantity | Unit Price | Catalog | ||||
|---|---|---|---|---|---|---|
Sold in: 1 Each | HT9084930 Mfr# 9084930 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 0mm | ||||
Sold in: 1 Each | HT9088247 Mfr# 9088247 | Face Frame Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 1.5mm | ||||
Sold in: 1 Each | HT9179885 Mfr# 9179885 | 3mm Sensys Cam Adjustable Face Frame Mounting Plate, Nickel-Plated | ||||
Sold in: 1 Each | HT9088245 Mfr# 9088245 | Linear Mounting Plate with Height Adjustment, Nickel-Plated, Screw-On, 3mm | ||||
Sold in: 1 Each | HT9090884 Mfr# 9090884 | Sensys Cam Adjustment Universal Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm | ||||
Sold in: 1 Each | HT9084931 Mfr# 9084931 | Sensys Cam Adjustment Face Frame Mounting Plate, Nickel-Plated, Screw-On, 4.5mm |
