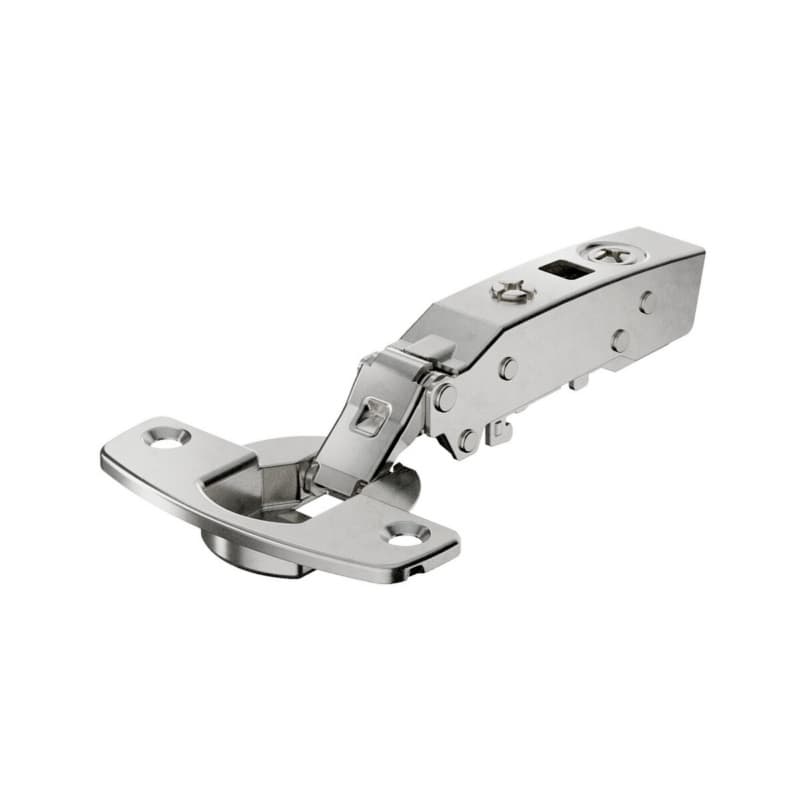

Hettich Sensys Soft-Close Hinge For Cabinet Doors

Hettich Sensys soft-close hinge is a concealed cabinet hinge designed for full overlay doors on face-frame and frameless cabinets, so it supports common kitchen and casework layouts while keeping the hinge hidden from the front. As a zero protrusion hinge, it allows interior storage space to be used more efficiently because open doors do not project into the cabinet interior. The 110 degree opening angle gives doors generous swing without overextending, which helps cabinets near walls or appliances operate smoothly. A soft-close Silent System is built into the hinge, so doors slow down as they close and avoid hard slamming that can stress the cabinet. This Sensys version is specified as a thin door hinge for door thickness from 10mm, so it suits modern thinner fronts while still providing reliable closing action.

Key Sensys Hinge Details That Support Daily Use

• The zero protrusion concealed hinge design lets drawers or rollouts inside the cabinet move freely when doors are open, which keeps interior hardware functional without door interference.
• The integrated Silent System soft-close damper operates within a temperature range from 41 F to 104 F (5 C to 40 C), so the closing action stays consistent in typical residential and shop environments.
• The 110 degree opening angle provides wide access to cabinet interiors, which helps when loading larger items or working inside the case during installation or adjustment.
• The full overlay configuration lets the door cover the cabinet front more completely, which creates a clean visual line and aligns with common overlay layouts in kitchens and built-ins.
• The 7.8mm cup depth gives a defined drilling depth in the door, which simplifies boring setups and supports repeatable production on multiple doors.

Mounting And Adjustment Details For Installers

This Sensys concealed cabinet hinge uses a screw-on mounting method, so the cup and arm fasten to the door and plate using standard screw-driving operations familiar in the shop or on site. Integrated overlay adjustment of plus 2mm to minus 2mm is built into the hinge, allowing the door position across the face of the cabinet to be shifted slightly after mounting to tighten reveals. Integrated depth adjustment of plus 3mm to minus 2mm lets the door move in and out relative to the cabinet front, which helps achieve even gaps and flush alignment with adjacent doors or panels.

Using The Sensys 110 Degree Hinge In Cabinet Work

Where This Concealed Hinge Fits Best

This Hettich America Corporation Sensys hinge is a concealed cabinet hinge from the European standard hinge category, so it suits projects that call for a clean, modern look with no exposed knuckles on the face. As a full overlay face-frame and frameless hinge in nickel finish, it fits both traditional face-frame boxes and frameless carcasses, which is useful when working across mixed cabinet lines. The thin door hinge design for door thickness from 10mm, and for door thickness 10-19mm, makes it appropriate for lighter doors or engineered materials where standard thick-door hinges may not seat properly. Its zero protrusion characteristic is particularly helpful on cabinets with interior pull-outs, because open doors do not extend into the cabinet space and obstruct moving components or stored items.

How Sensys Adjustments Support Consistent Results

The integrated overlay adjustment of plus 2mm to minus 2mm on this hinge lets installers fine-tune side-to-side door position without changing the bore or plate location, which speeds up door alignment on long cabinet runs. The integrated depth adjustment of plus 3mm to minus 2mm adds front-to-back tuning, so doors can be brought flush with neighboring fronts or slightly set back as the design requires. Height adjustment is handled at the mounting plate, giving a dedicated adjustment point for vertical shifts that keeps the hinge arm settings focused on reveal control. The wide automatic closing angle of 35 degrees means that once the door reaches this partially closed position, the hinge pulls it shut, which reduces the effort needed on every close and helps doors seat reliably. The temperature stable damper rated from 41 F to 104 F (5 C to 40 C) keeps this soft-close action similar in cooler shops and warmer kitchens, supporting predictable performance over seasonal changes.

Common Questions About The Hettich Sensys 9094300 Hinge

Selecting This Sensys Hinge For Your Cabinet Run

The Hettich Sensys soft-close hinge 9094300 combines a full overlay layout with concealed European hinge design, so it serves face-frame and frameless projects that need a clean look and soft closing. Its thin door capability for 10-19mm doors, 110 degree opening angle, and zero protrusion support modern cabinet constructions with interior pull-outs or storage systems. With integrated overlay and depth adjustments plus height adjustment at the mounting plate, this hinge gives practical control over reveals and alignment across a cabinet run.
