Hettich Sensys Soft Close Hinge For Cabinets

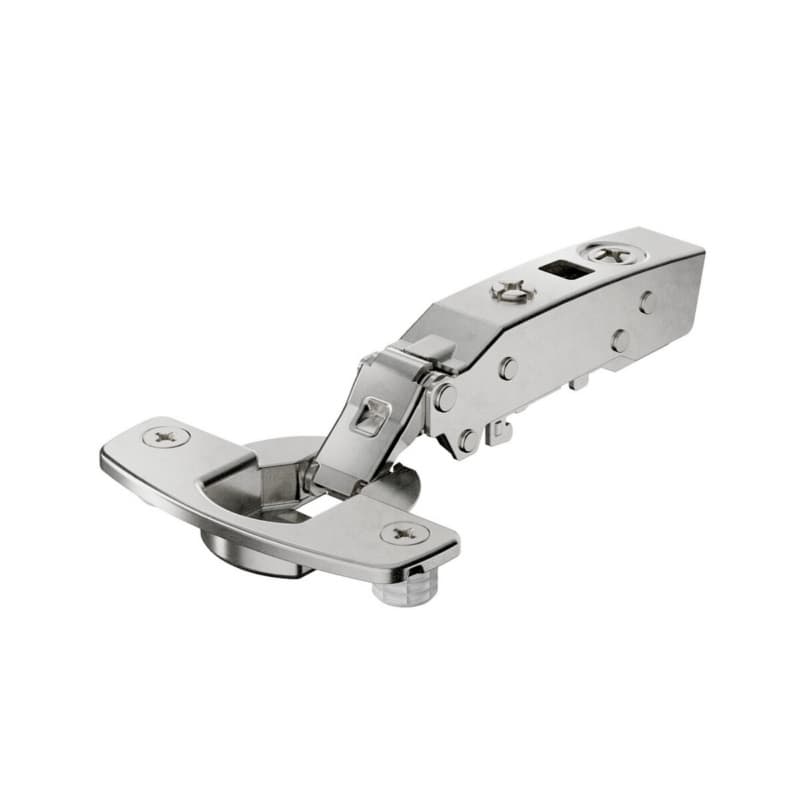

Hettich Sensys soft close hinge is a concealed cabinet hinge from Hettich America Corporation that provides a full overlay solution for face frame and frameless applications, so one hinge style can support different cabinet constructions in the shop or on site. As a Sensys hinge in the concealed long arm family, it delivers a 110 degree opening angle, which gives wide access into the cabinet interior while still protecting the hinge from over-opening stress in normal use. The hinge design is described as zero protrusion, which helps interior storage by keeping the hinge arm out of the way when drawers or pullouts operate inside the same cabinet space. A built-in Silent System damper is integrated into the hinge, so doors are soft-closing without adding separate components to the door or frame.

Key Sensys Hinge Details That Support Workflows

• The 110 degree opening angle gives generous door swing for loading and access, which benefits cabinet layouts that combine shelves and interior pullouts.
• The hinge provides full overlay on face frame and frameless cabinets, so layouts using different construction methods can keep a consistent hinge line.
• The Sensys hinge operates with zero protrusion, which protects clearance for interior rollout trays or organizers running close to the door plane.
• The integrated Silent System damper delivers soft-closing door action, reducing door slamming in everyday cabinet use.
• The hinge is specified for door thickness from 10 mm to 19 mm, so it can be applied across a range of modern thin and standard cabinet door materials.

Mounting And Adjustment For Sensys 110 Degree Hinge

This Sensys 110 degree hinge uses a dowel configuration, which provides a precise locating interface between the hinge cup and the cabinet door during door preparation. The cup depth is specified as 7.8 mm, so boring operations can be set to that depth for consistent seating of the hinge in production or custom work. Integrated overlay adjustment of plus 2 mm to minus 2 mm is built into the hinge, letting the installer shift the door overlay on the cabinet after mounting without redrilling. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door move in and out relative to the cabinet front, helping align door gaps and flushness. Height adjustment is located at the mounting plate, so vertical positioning can be fine-tuned on the cabinet side for even reveals across a run of doors.

Using The Sensys Thin Door Hinge In Cabinet Projects

Where This Sensys 110 Degree Hinge Fits

This Sensys thin door hinge is specified for door thickness starting from 10 mm and for door thickness from 10 mm to 19 mm, so it supports thinner contemporary fronts as well as mid-range door constructions. The hinge sits in a 7.8 mm deep cup bore, which means it can be used on doors where material thickness still needs to remain substantial behind the cup. Zero protrusion performance helps when cabinets use internal pullouts, because the hinge arm stays out of the drawer path, reducing interference between door hardware and sliding storage elements. The wide automatic closing angle of 35 degrees draws the door into the soft close action as the door nears the cabinet, which is helpful for consistent closure without user effort.

Why Sensys Soft Closing And Adjustments Matter

The Sensys hinge features a temperature stable damper operating in the temperature range 41 F to 104 F, so the soft close behavior is maintained across those normal indoor conditions instead of changing feel with seasonal temperature shifts. Integrated overlay adjustment of plus 2 mm to minus 2 mm gives lateral movement of the door, so small case deviations or drilling tolerances can be corrected by turning the hinge adjustment screw. Integrated depth adjustment of plus 3 mm to minus 2 mm allows the door to move toward or away from the cabinet front, which helps achieve a consistent front plane across multiple doors on a large installation. Height adjustment at the mounting plate gives vertical control, so door tops and bottoms line up neatly along face frame rails or frameless cabinet edges. With the full overlay capability on face frame and frameless cabinets, all of these adjustments work together to support tight reveals and repeatable alignment in production and retrofit work.

Common Questions About The Hettich Sensys Hinge

Choose This Sensys Hinge For Full Overlay Projects

The Hettich Sensys soft close hinge with 110 degree opening and zero protrusion offers a full overlay option for face frame and frameless cabinets, so it suits varied casework using a single hinge line. Its thin door capability from 10 mm to 19 mm and 7.8 mm cup depth help support modern fronts where material thickness is carefully controlled. With integrated overlay, depth, and height adjustments plus the Silent System damper, this concealed cabinet hinge gives installers the control to dial in clean reveals and soft closing action across residential or commercial cabinetry. Use this Sensys hinge when those verified specifications match the cabinet construction and door thickness on the project.
