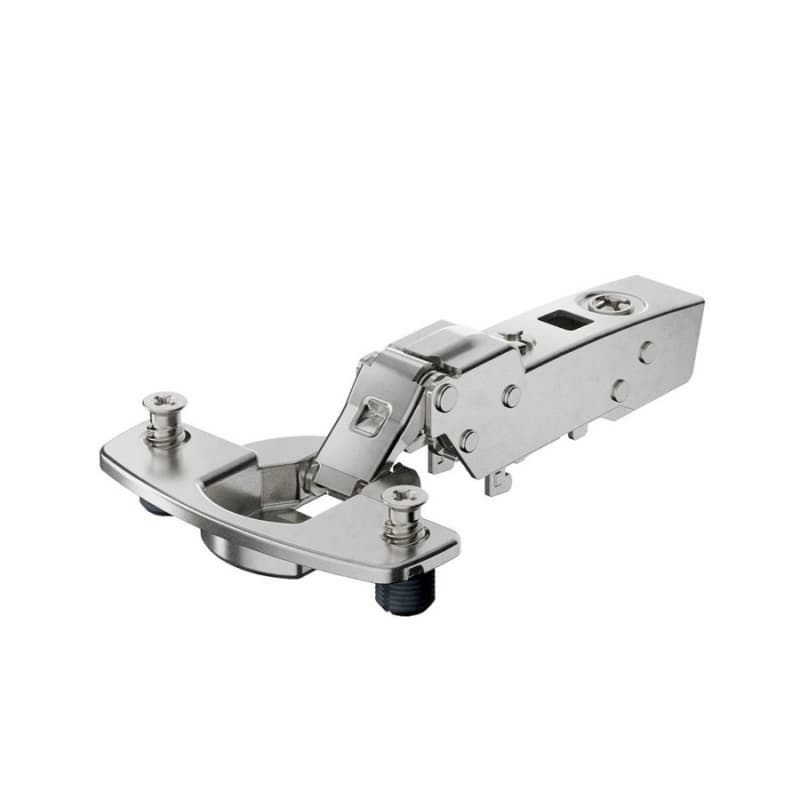

Hettich Sensys Soft-Close Hinge For Cabinets
Hettich Sensys soft-close hinge is a concealed cabinet hinge designed as a half overlay face-frame or frameless solution, so doors stay hidden hardware-wise while aligning to common cabinet constructions. The zero protrusion hinge design keeps the interior clear, which helps use storage space right up to the cabinet edge. A 110 degree opening angle lets doors swing wide for access without swinging excessively into walkways. The hinge integrates the Silent System Sensys soft-close function, which slows the door at the end of travel to prevent abrupt contact between door and cabinet. A wide automatic closing angle of 35 degrees means the hinge actively pulls the door shut from a partially open position, helping doors land consistently. Nickel finish on the hinge provides a hard-wearing surface, which supports long-term use in typical woodworking environments.
Key Hettich Sensys Features For Cabinet Projects
- The Sensys hinge is a zero protrusion concealed hinge, so interior cabinet components can run close to the hinge side without contact, which supports tight storage layouts and clear drawer movement.
- A 110 degree opening angle allows comfortable access to cabinet interiors while helping maintain control of door swing in typical kitchen or shop runs.
- The built-in Silent System Sensys soft-close damper slows the door near closing, which reduces impact on the face frame or case and supports quieter operation in daily use.
- The wide automatic closing angle of 35 degrees means once the door passes that point, the hinge pulls it shut, which promotes consistent closing without relying on extra force.
- The temperature stable damper is rated from 41 F to 104 F (5 C to 40 C), so the soft-close behavior remains predictable across common interior temperature ranges.
- Nickel finish on the hinge surfaces offers a protective coating, which supports resistance to handling wear during installation and normal cabinet service.
Mounting And Adjustment Details For This Hinge
This Sensys concealed cabinet hinge uses an expansion dowel design, which sets the hinge cup into the door with dowels that grip the bore for secure seating. The cup depth is 7.8mm, so the door bore must match that depth to support proper hinge body placement. The hinge is specified as a thin door hinge for door thickness starting from 10mm, which aligns with lighter construction doors often used in modern cabinetry. For door thickness between 10mm and 19mm, the hinge geometry supports correct pivoting so the door clears the case edge through the 110 degree swing. Integrated overlay adjustment of plus 2mm / minus 2mm allows shifting the door sideways relative to the cabinet front after mounting, which helps dial in reveals. Integrated depth adjustment of plus 3mm / minus 2mm shifts the door in and out relative to the cabinet, which assists in aligning multiple doors across a run. Height adjustment is set at the mounting plate, so vertical gaps between doors can be tuned on the plate side of the system.
Using This Concealed Hinge In Real Projects
Where This Sensys Hinge Works Best
This Hettich America Corporation Sensys 110 degree hinge, part number 9094316, is a concealed cabinet hinge suited to both face-frame and frameless cabinet construction using a half overlay layout. The zero protrusion hinge design supports applications where interior rollout storage, pullouts, or closely spaced shelving run near the hinge side of the opening. The hinge operates with doors from 10mm to 19mm thick, which fits thin-door cabinet designs that favor lighter fronts while still needing a concealed long arm hinge format. A 110 degree opening angle serves general-purpose cabinet runs where full access is needed without the extra swing of wide-angle hardware. The nickel finish aligns with typical cabinet hinge hardware palettes, which helps maintain a consistent visual when doors are opened in residential or commercial settings. As part of the concealed cabinet hinges class, this Sensys hinge keeps hardware out of sight from the front, which supports clean-faced cabinet layouts.
Why These Sensys Details Support Accurate Results
The integrated Silent System Sensys soft-close feature manages the closing speed, which supports consistent door seating across multiple cabinets because each door decelerates in the same way. A wide automatic closing angle of 35 degrees means once the door passes that point, the hinge draws it to the cabinet, which helps reduce partially ajar doors on frequently used runs. The temperature stable damper range of 41 F to 104 F keeps the soft-close action similar in cooler shops and warmer interior spaces, which avoids seasonal variation in closing feel. Cup depth of 7.8mm defines the bore depth, which guides drilling setups and helps repeat precise seating when boring multiple doors. Integrated overlay adjustment of plus 2mm / minus 2mm gives lateral play at the hinge, which is valuable when aligning door edges to adjacent fronts or panels. Integrated depth adjustment of plus 3mm / minus 2mm lets the installer fine-tune the door-to-face-frame or door-to-case gap without reboring, which reduces rework when cabinet faces are slightly out of plane. Height adjustment at the mounting plate keeps vertical tuning on the plate interface, which makes it practical to correct reveals across a bank of doors after the hinges are attached.
Common Hettich Sensys Hinge Buyer Questions
What type of hinge is the Hettich Sensys 9094316?
The Hettich Sensys 9094316 is a concealed cabinet hinge in the Sensys line, so it fits inside a 7.8mm cup bore and keeps the hinge hidden from the front of the cabinet.
How far does this Sensys hinge allow the door to open?
The hinge provides a 110 degree opening angle, which lets the door swing wide enough for access while maintaining controlled movement along cabinet runs.
What door thickness range does this hinge support?
The hinge is specified as a thin door hinge for door thickness starting at 10mm and is described for door thickness 10mm to 19mm, matching lighter cabinet door constructions.
How does the soft-close function perform over temperature changes?
The temperature stable damper operates from 41 F to 104 F (5 C to 40 C), so soft-close behavior remains consistent across that interior temperature range.
What overlay adjustment does this hinge provide?
The hinge offers integrated overlay adjustment of plus 2mm / minus 2mm, which allows side-to-side tuning of the door position after mounting for accurate reveals.
What depth adjustment range is built into this Sensys hinge?
The hinge provides integrated depth adjustment of plus 3mm / minus 2mm, letting the door move in or out relative to the cabinet front to align gaps across doors.
Selecting This Sensys Hinge For Your Cabinets
This Hettich Sensys soft-close hinge from Wurth Baer Supply combines zero protrusion design, 110 degree opening, and Silent System damping, which supports efficient cabinet storage and controlled closing. With cup depth 7.8mm, thin-door suitability from 10mm, and overlay and depth adjustments built in, it offers practical tuning for half overlay face-frame or frameless layouts. Choose this concealed cabinet hinge Sensys 9094316 when a nickel-finished, temperature stable soft-close hinge is needed for precise door alignment across a run.
