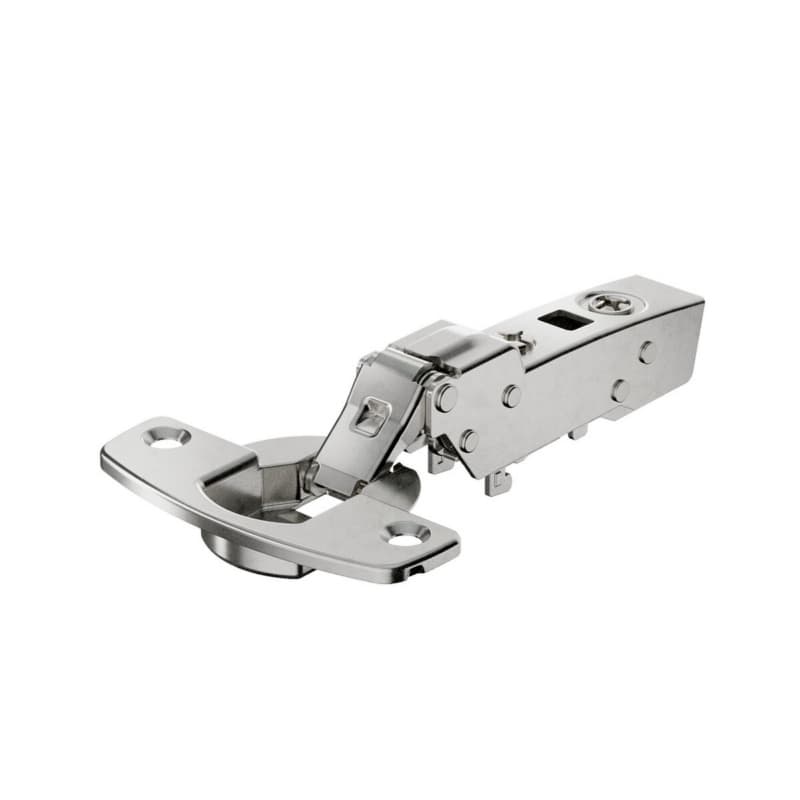

Hettich Sensys Soft-Close Hinge For Cabinets

Hettich Sensys soft-close hinge is a concealed cabinet hinge designed as a half overlay option for face-frame and frameless applications, so it supports consistent door layouts across different cabinet constructions. The hinge delivers a 110 degree opening angle, giving doors wide access while still controlling door swing in tight runs of cabinets. Its zero protrusion design keeps the door clear of the interior when opened, which helps use storage space efficiently. The integrated Silent System provides soft-close performance, so the hinge slows the door in the last part of travel and helps prevent slamming during everyday use. As a thin door hinge specified from 10 mm door thickness, and for door thickness from 10 mm to 19 mm, it supports lighter, thinner fronts while maintaining a concealed, European standard hinge layout.

Key Sensys Hinge Details For Daily Cabinet Use

• The 110 degree opening angle allows the door to swing open widely, helping with access to cabinet interiors during loading, unloading, and installation adjustments.
• The zero protrusion concealed hinge design keeps hardware clear of the cabinet interior when the door is open, helping storage items slide or sit inside without interference from the hinge arms.
• The Silent System soft-close function uses an integrated damper to slow the door near closing, which reduces impact on the cabinet frame and helps doors settle quietly against the front.
• The temperature stable damper works in the range from 41 F to 104 F (5 C to 40 C), supporting consistent soft-close action in typical indoor woodworking and cabinet environments.
• The thin door hinge design for door thickness from 10 mm to 19 mm allows the use of slimmer fronts, which can reduce material thickness while keeping a full-function concealed hinge.
• The nickel finish on this concealed cabinet hinge presents a neutral metal appearance at the cup and arm, matching common cabinet hardware and supporting a uniform look where the hinge is visible during installation.

Adjustment-Focused Hinge Setup For Precise Fit

This concealed cabinet hinge provides an integrated overlay adjustment of plus 2 mm to minus 2 mm, allowing the door position to shift side-to-side relative to the cabinet so reveals and overlays align along a run. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door move in and out from the cabinet front, helping match door plane across multiple fronts. Height adjustment at the mounting plate supports vertical positioning, so the door can be raised or lowered relative to the cabinet opening for even gaps at top and bottom. Together, these adjustments enable fine-tuning of door fit on both face-frame and frameless cabinets using the same Hettich Sensys soft-close hinge.

Using The Hettich 9094310 Hinge In Cabinet Projects

Where This Half Overlay Hinge Fits Best

This Hettich Sensys soft-close hinge is specified as a half overlay hinge for face-frame and frameless cabinets, so it suits layouts where the door overlays the cabinet side or frame by part of its thickness. The hinge belongs to the class of concealed cabinet hinges and European standard hinges, which means it fits projects calling for a hidden long-arm hinge arrangement on modern cabinets. A cup depth of 7.8 mm allows the hinge to seat into a shallow cup bore in the door, which supports thinner doors within the 10 mm to 19 mm thickness range. The 110 degree opening angle supports access for typical base and wall cabinets without requiring an extreme swing, helping doors clear adjacent surfaces in many standard runs.

Why Sensys Adjustments Improve Door Alignment

The integrated overlay adjustment of plus 2 mm to minus 2 mm allows an installer to bring door edges into line along a bank of fronts without redrilling hinge cups, because the hinge arm provides side-to-side movement on the cabinet. Integrated depth adjustment of plus 3 mm to minus 2 mm lets the door front be brought flush with neighboring doors or drawer fronts, improving the visual plane of the cabinet face. Height adjustment at the mounting plate provides up-and-down tuning at the cabinet side, which is useful for matching rail lines and maintaining consistent gaps at the top and bottom of each door. The temperature stable damper, operating from 41 F to 104 F (5 C to 40 C), supports repeatable soft-close behavior through normal seasonal indoor temperature changes, so the closing action stays similar over time.

Common Questions About This Sensys Hinge

Selecting This Hinge For Your Cabinet Layout

The Hettich Sensys soft-close hinge 9094310 combines a 110 degree opening angle, zero protrusion geometry, and Silent System damping to handle modern cabinet doors smoothly. Its half overlay design for face-frame and frameless work, plus a 7.8 mm cup depth and a door thickness range from 10 mm to 19 mm, supports thin-door projects using European concealed hardware. Integrated overlay, depth, and height adjustments provide the fine-tuning needed to align doors on site. For projects calling for a concealed, soft-close European hinge from Hettich America Corporation, this hinge offers a focused set of cabinet-ready details.
