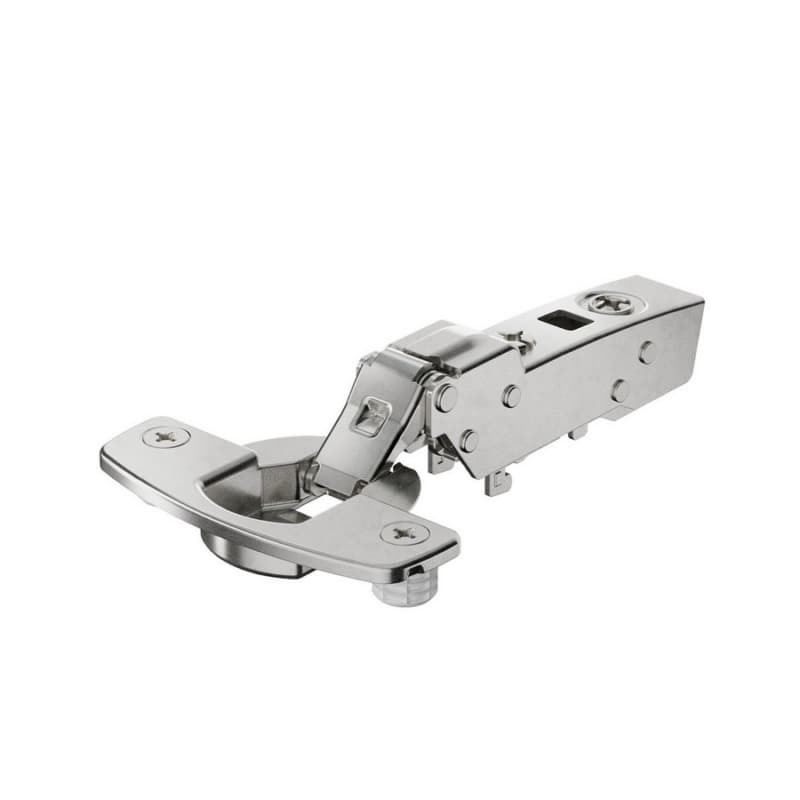

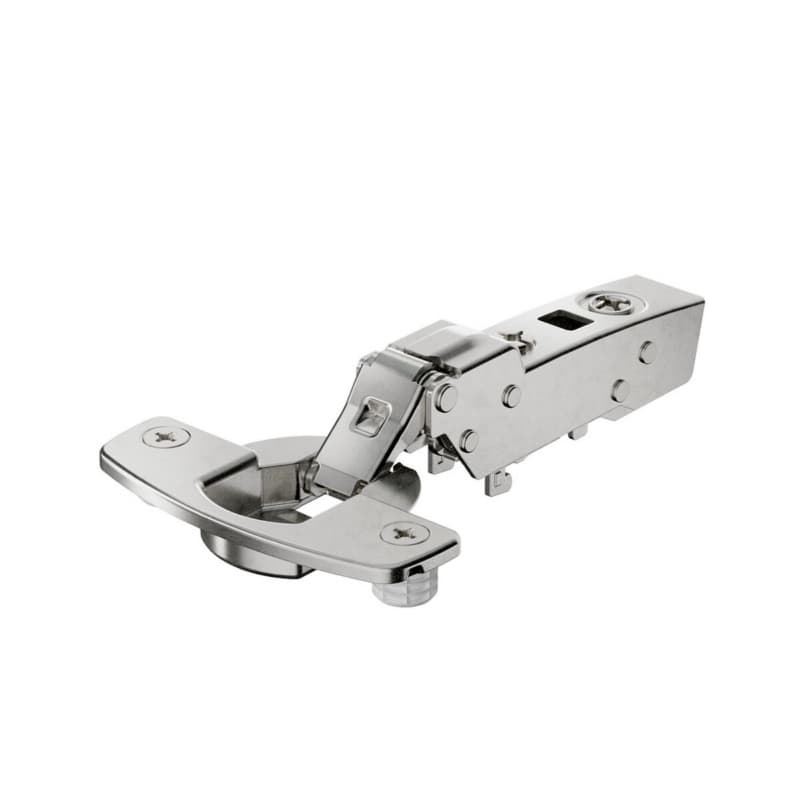

Hettich Sensys Soft-Close Silent System Half Overlay Face-Frame;Frameless Hinges Nickel, 110° Dowel - 9094311

Hettich Sensys Soft-Close Hinge For Cabinets

Hettich Sensys soft-close hinge is a concealed cabinet hinge from the Sensys line designed as a half overlay solution for face-frame or frameless applications. The hinge delivers a zero protrusion design, so interior storage space stays usable when doors are opened across adjacent pull-outs or shelves. A 110 degree opening angle gives doors a wide, practical swing, which helps when accessing cabinet interiors during everyday use or during installation adjustments. The hinge is part of the Concealed Cabinet Hinges class and uses a long arm European standard hinge format, aligning with common cabinet construction in woodworking shops. Soft-close function is provided by the Silent System Sensys technology, so the hinge controls door movement at the end of travel for quieter door closing in kitchens, baths, or commercial casework where noise control matters.

Key Sensys Hinge Details That Support Work

• The zero protrusion concealed hinge layout keeps the hinge arm from projecting into the cabinet interior, which helps optimize storage layouts and movement of drawers or organizers behind the door swing.
• The 110 degree opening angle lets the door open wide for better access, which can reduce interference with adjacent cabinets and improve working clearance during fitting and alignment.
• The Silent System Sensys soft-close function manages door deceleration as it closes, which supports controlled door movement and reduces impact on the cabinet front and hinge mounting points.
• The hinge is specified as a half overlay design for face-frame and frameless cabinets, which defines the door position on the front of the case and supports consistent reveals across a run of doors.
• The hinge body is identified by manufacturer part 9094311 and Hettich Sensys naming, which ties directly to catalog and project specifications when ordering or matching existing hardware.

Mounting And Adjustment Details For This Hinge

The Sensys 110 THN W/SISY, HALF, SFT CL, DOWEL hinge uses a dowel connection, so the cup is set into a bored hole in the door and held by dowels in the hinge cup pattern. Cup depth is specified at 7.8mm, which defines the boring depth for the hinge cup and helps maintain material strength in the door while seating the hinge correctly. The hinge is suitable for thin doors from 10mm and is specified for door thickness from 10-19mm, so door sizing within that range stays within the intended geometry of the hinge arm and cup. These mounting and sizing details guide boring setups and door construction so that the hinge operates through its full 110 degree range and soft-close action as designed.

Using This Sensys Hinge In Cabinet Projects

Where This Concealed Hinge Is Typically Applied

This Sensys concealed cabinet hinge is specified for use on cabinet doors with thickness from 10-19mm, so it serves both thin doors starting at 10mm and standard cabinet door thicknesses within that range. The hinge is described as a half overlay hinge for face-frame and frameless cabinets, so it positions the door to cover part of the cabinet side or frame while leaving a defined reveal. That configuration supports layout of multiple doors across a run where consistent overlays are required. The zero protrusion feature means that when doors are open, the hinge arm does not extend into the cabinet interior, so it helps when cabinets have interior roll-outs or adjustable shelves that need to move freely past the hinge envelope. The 110 degree opening angle further supports access by moving the door out of the way, which can be useful in residential kitchens, commercial casework, or shop-built storage where access to the full cabinet width is important.

Why The Sensys Adjustments Support Clean Results

The hinge provides integrated overlay adjustment of plus 2mm to minus 2mm, so the door position over the cabinet front can be shifted slightly to fine-tune gaps between doors or between door and cabinet. This adjustment range supports quick correction of small layout differences without re-boring or re-drilling, which helps during installation and later alignment work. Integrated depth adjustment of plus 3mm to minus 2mm allows the door to move in and out relative to the cabinet front, which helps align the door face with adjacent fronts so planes line up across the run. Height adjustment is located at the mounting plate, giving vertical movement of the door that can be used to align top and bottom gaps on multiple doors. Together, these adjustment features let installers respond to minor case deviations or door warp within the hinge system, helping achieve consistent reveals and smooth closing behavior with the Silent System Sensys soft-close damper. The temperature stable damper, rated for 41 F to 104 F (5 C to 40 C), maintains its soft-close performance within that temperature range, so door motion remains predictable in normal conditioned indoor environments.

Common Questions About The Sensys 110 Degree Hinge

Choose This Sensys Hinge For Controlled Door Motion

The Hettich Sensys soft-close hinge with Silent System combines a 110 degree opening angle, zero protrusion design, and half overlay layout for face-frame or frameless cabinets, so it supports efficient cabinet access and storage planning. Door thickness capacity from 10-19mm, a 7.8mm cup depth, and dowel-mounted cup construction define clear parameters for door boring and construction. Integrated overlay and depth adjustment, plus height adjustment at the mounting plate, give installers the ability to refine door position after mounting so reveals and planes line up across the run. For cabinet projects using concealed cabinet hinges where quiet, controlled door closing and adjustable alignment matter, this Sensys hinge configuration offers a defined, repeatable hardware choice.
