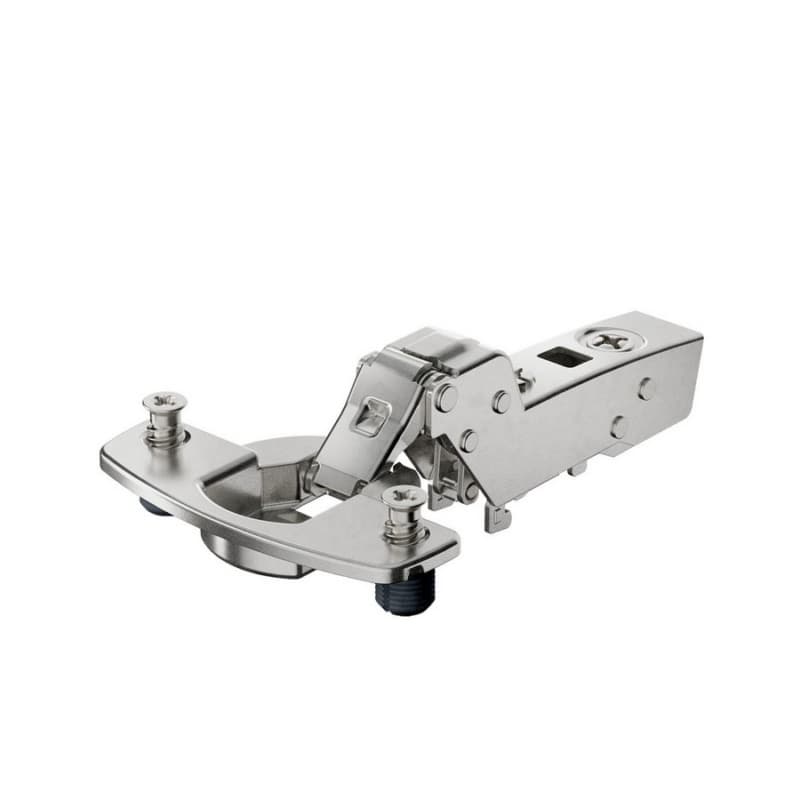

Hettich Sensys Soft-Close Silent System Inset Overlay Face-Frame;Frameless Hinges Nickel, 110° Dowel - 9094326

Hettich Sensys Soft-Close Hinge For Thin Doors

Hettich Sensys soft-close hinge is a concealed cabinet hinge from the Sensys series designed as a zero protrusion hinge, so the open door does not project into the cabinet space and storage areas remain accessible for use. This hinge belongs to the concealed cabinet hinge class, so the hardware stays hidden in the finished installation and the door face stays visually clean for cabinet projects. The hinge offers a wide automatic closing angle of 35 degrees, which pulls the door closed from a partially open position and helps doors settle consistently against the frame in everyday operation. A temperature stable damper in the Silent System works in the temperature range from 41 F to 104 F (5 C to 40 C), so the soft-close effect remains consistent across typical shop and room conditions. The nickel finish on the hinge provides a neutral metal appearance that suits common cabinet hardware combinations.

Key Sensys Hinge Details That Help On The Job

• The zero protrusion concealed hinge design keeps the opened door clear of the cabinet interior, which simplifies layouts with pull-out elements and lets installers plan storage without allowing for hinge swing space.
• The wide automatic closing angle of 35 degrees assists the door into the closed position from a partially open state, which reduces the need for precise user handling and helps doors sit properly against the cabinet.
• The Silent System temperature stable damper rated from 41 F to 104 F (5 C to 40 C) maintains a predictable soft-close motion in normal indoor environments, which supports consistent closing speed across seasons.
• The 110 degree opening angle of this hinge gives doors a broad swing for cabinet access, which offers room for hands and stored items during regular use without excessive projection into walkways.
• The nickel finish on the hinge provides a standard metal appearance that coordinates with many cabinet interiors, which helps the concealed hardware blend with other components when the door is open.

Mounting And Adjustment Features For Cabinet Fit

This Sensys concealed cabinet hinge uses an expanding dowel design that speeds installation into the door, so drill patterns can be used repeatedly across a run of fronts in production or retrofit work. The hinge is identified as a thin door hinge for door thickness from 10 mm and is specified for door thickness from 10 mm to 19 mm, giving a clear range for selecting the right doors in cabinet construction. A cup depth of 7.8 mm keeps the hinge cup relatively shallow in the door, so door machining stays within this depth and preserves material on thinner doors. Integrated overlay adjustment of plus 2 mm and minus 2 mm allows side-to-side door alignment on the cabinet, and integrated depth adjustment of plus 3 mm and minus 2 mm lets the door move in and out relative to the cabinet front. Height adjustment is handled at the mounting plate, so vertical gaps between doors and fronts can be tuned at the plate location.

Using This Sensys Concealed Hinge In Cabinet Work

Where This Hettich Sensys Soft-Close Hinge Fits

This Hettich Sensys soft-close hinge is described as an inset overlay hinge for face-frame and frameless applications, so it can be specified for both traditional face-frame cabinets and frameless European style cases using appropriate mounting plates. The hinge is part of the European concealed long arm hinge family and the European standard hinge category, placing it in a familiar format for cabinet shops already working with cup-and-arm concealed hinges on kitchens, baths, or casework. The door thickness range from 10 mm to 19 mm and the classification as a thin door hinge make it suitable where lighter or thinner fronts are used, such as certain contemporary cabinet designs. The 110 degree opening angle provides access suitable for everyday cabinet use, so doors can swing far enough for reaching stored contents without adopting special opening hardware. With a cup depth of 7.8 mm, the hinge suits doors where excessive cup depth would remove too much material from a thin panel.

Why These Sensys Adjustments Support Repeatable Results

The integrated overlay adjustment range of plus 2 mm and minus 2 mm lets installers fine-tune how far the door overlays or sits in relation to the cabinet side, which helps bring reveal lines into alignment across multiple doors. Integrated depth adjustment of plus 3 mm and minus 2 mm allows the door to move toward or away from the cabinet front, which is valuable for setting even gaps at face-frames or aligning doors flush on frameless cabinets. Height adjustment handled at the mounting plate means vertical positioning is corrected by shifting the plate, so doors can be leveled relative to each other without reboring the door cup. The zero protrusion hinge design prevents the opened door from cutting into the cabinet interior volume, which supports layouts where pull-outs or interior fittings operate behind the door. The wide automatic closing angle of 35 degrees works with the Silent System damper, so once the door is brought into that angle range the hinge closes it smoothly under damping.

Common Questions About Hettich Sensys 9094326 Hinges

Selecting This Sensys Hinge For Cabinet Projects

The Hettich Sensys soft-close hinge with Silent System combines a 110 degree opening angle, a 7.8 mm cup depth, and zero protrusion to address both access and storage needs in cabinet work. Its classification as a thin door hinge with a door thickness range from 10 mm to 19 mm suits lighter fronts often used in modern designs. Integrated overlay and depth adjustments and height control at the mounting plate support dialing in reveals without reboring. For cabinetmakers and installers working with European concealed hinges, this Sensys 9094326 model offers a defined adjustment range and operating temperature window that supports repeatable results across a run of doors.
