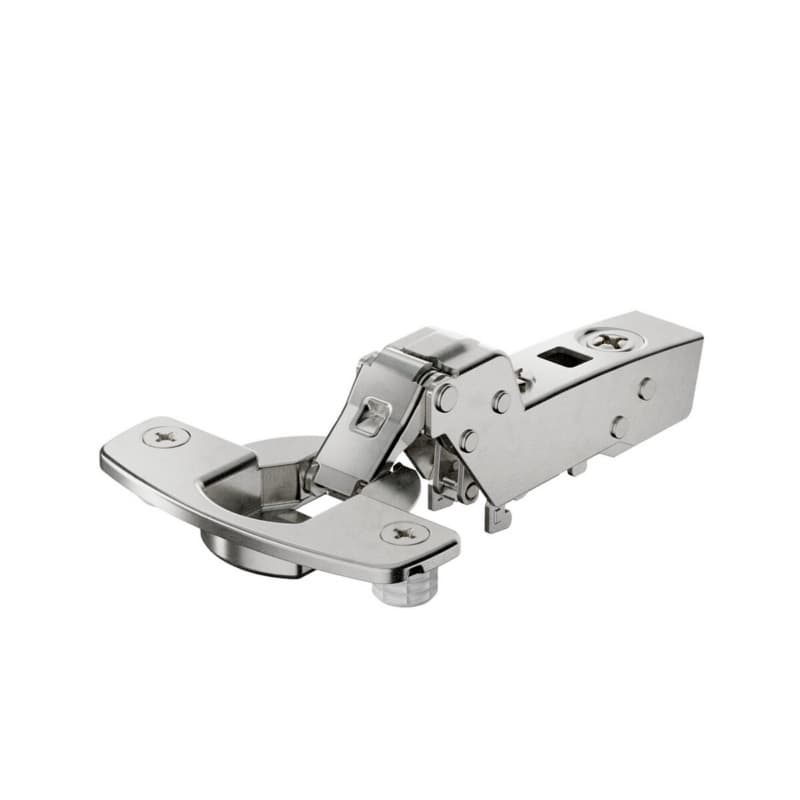

Hettich Sensys Soft-Close Silent System Inset Overlay Face-Frame;Frameless Hinges Nickel, 110° Dowel - 9094321

Sensys Concealed Hinge 110 Degree For Cabinets

Sensys concealed hinge 110 degree from Hettich America Corporation is a concealed cabinet hinge designed for inset and overlay applications on face-frame and frameless cabinets, so it supports a wide range of standard cabinet construction in the shop. This Sensys hinge is described as a zero protrusion concealed hinge, which means the hinge arm stays out of the storage area and lets shelves move freely across the opening. The hinge offers a 110 degree opening angle that gives good door swing for access while maintaining common clearances around adjacent fronts. The hinge uses a dowel mounting style, which provides a precise press-in connection at the door for repeatable drilling patterns. As part of the Sensys line in nickel finish, it matches other European concealed long arm hinges in typical cabinet runs.

Key Sensys Hinge Details That Help Workflows

• The hinge is part of the Sensys hinges range from Hettich, so it aligns with a known concealed cabinet hinge platform many shops already use across multiple projects.
• The hinge is described as a zero protusion concealed hinge, which keeps the hinge components out of the cabinet interior and helps when designing tight shelf layouts.
• A wide automatic closing angle of 35 degrees allows the hinge to pull the door closed from a partially open position, which supports consistent closing behavior across doors.
• The hinge uses a temperature stable damper in the range 41 F to 104 F (5 C to 40 C), so the soft-close action stays more consistent in typical room and shop environments.
• The product is identified as a Silent System Sensys thin door hinge, which is suited for thinner door constructions found in modern cabinetry.
• The hinge is specified for door thickness from 10 mm, fitting thin fronts often used with lightweight or contemporary panel materials.
• For door thickness 10-19 mm, the hinge geometry supports this range so doors in that thickness band can be planned with a single drilling setup.
• A cup depth of 7.8 mm reduces material removal at the door, which can help when working with thinner panels or skins.

Hinge Adjustment And Fit For Cabinet Installation

This Sensys concealed cabinet hinge provides integrated overlay adjustment of +2 mm / -2 mm, which lets the installer fine-tune side gaps and face alignment after the doors are hung. The hinge also offers integrated depth adjustment of +3 mm / -2 mm, so the door can be moved in and out relative to the cabinet front to refine reveal and close pressure. Height adjustment is handled at the mounting plate, which separates vertical fine-tuning from the hinge body and supports predictable adjustment steps. Together, these integrated adjustments tie directly to drilling layouts, allowing doors to be bored to standard patterns while final margins are dialed in at installation.

Using This Hettich Sensys Hinge In Cabinet Work

Where This Sensys Thin Door Hinge Fits Best

This Sensys soft-close Silent System hinge is part of Hettichs concealed cabinet hinges category, fitting European standard hinge layouts used in many face-frame and frameless cabinet lines. Because the hinge supports inset and overlay face-frame and frameless applications, it can be specified across different cabinet constructions under one part number, simplifying ordering. The hinge is suitable for door thickness from 10 mm and for door thickness 10-19 mm, which matches thin door designs used with engineered panels, high-pressure laminates on lightweight cores, or other modern door materials. The 7.8 mm cup depth allows boring into thinner doors while maintaining a solid seating area, which matters when working near decorative faces or when edge distances are tight.

How Sensys Adjustments Support Clean Results

The integrated overlay adjustment of +2 mm / -2 mm enables quick correction of side reveals without redrilling, which is useful when cabinet boxes vary slightly or walls are uneven. Integrated depth adjustment of +3 mm / -2 mm provides control over how the door sits against the cabinet front, helping to balance soft-close action and visual flushness. Height adjustment at the mounting plate lets the installer shift doors vertically to line up across a run, relying on the plate interface instead of altering the hinge cup locations. The wide automatic closing angle of 35 degrees combines with the temperature stable damper between 41 F and 104 F (5 C to 40 C) so doors are drawn closed with a soft motion in typical interior conditions, giving cabinets a consistent close across different rooms.

Common Questions About This Sensys Hinge

Select This Sensys Hinge For Thin Cabinet Doors

The Hettich Sensys soft-close concealed hinge 9094321 combines zero protrusion geometry, a 110 degree opening angle, and Silent System damping tuned for 41 F to 104 F (5 C to 40 C), which suits everyday cabinet environments. Its specification for door thickness from 10 mm and for door thickness 10-19 mm supports thin door construction, while the 7.8 mm cup depth works well with modern engineered panels. With integrated overlay and depth adjustments plus height adjustment at the mounting plate, this hinge provides the tuning range needed to bring inset or overlay face-frame and frameless doors into clean alignment on the job.
