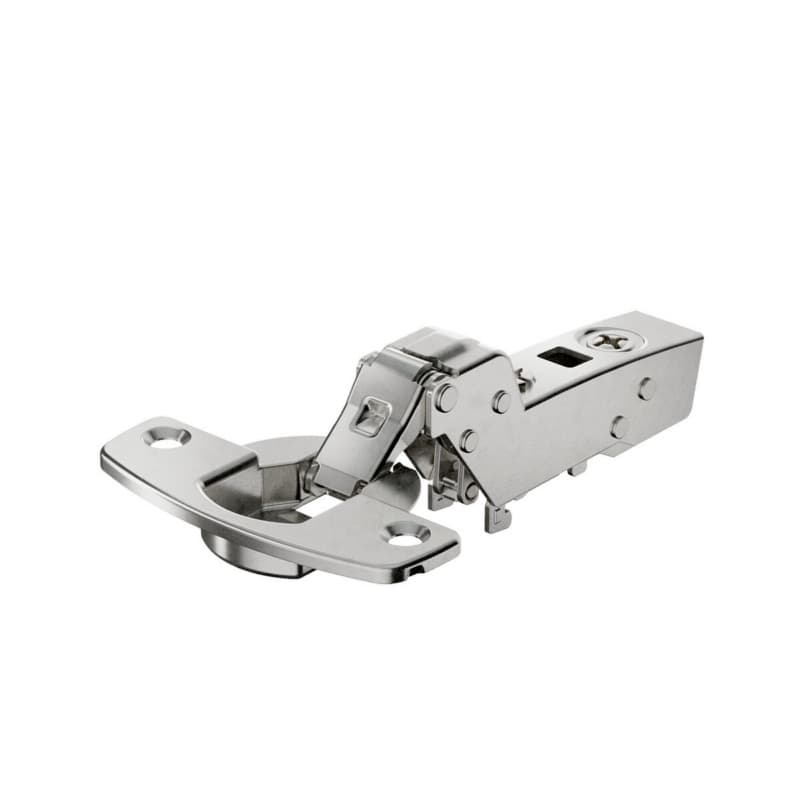

Hettich Sensys Soft Close Hinge For Concealed Cabinets

Hettich Sensys soft close hinge is a concealed cabinet hinge designed as a zero protusion European standard long arm hinge, so the door stays clear when opened and storage space in front of adjacent pull-outs can be used. The hinge offers a 110 degree opening angle, giving doors wide swing for everyday access without stressing the mounting points. It is specified as a Sensys thin door hinge for door thickness from 10mm and for door thickness 10-19mm, so it suits lighter, thinner doors in that range. A cup depth of 7.8mm keeps the drilling depth relatively shallow, which matters when working in thin material. The hinge is part of the Silent System Sensys range with soft-close function, so the door motion is damped by an internal system rather than external devices.

Key Sensys Hinge Details That Support Cabinet Work

• This concealed cabinet hinge is categorized as a European standard hinge, so it aligns with common drilling patterns used in many cabinet shops and supports repeatable boring operations.
• The hinge is described as a zero protusion design, so when the door opens it does not protrude into the interior space, helping pull-out shelves and drawers move freely in front of the door line.
• A 110 degree opening angle lets doors swing past a standard right angle, which gives better hand access to cabinet interiors and reduces interference with adjacent doors in many layouts.
• The hinge is specified in nickel, so its visible arm and parts present a neutral metallic appearance that blends with typical cabinet interiors and hardware finishes.
• As a concealed cabinet hinge, it mounts inside the cabinet and door, keeping the hardware hidden when the door is closed and leaving the exterior face uninterrupted for finishing.

Mounting, Screw-On Design, And Adjustment Function

The SAP description identifies this product as SENSYS 110 THN W/SISY,INST,SFTCL,SCRWON, indicating a screw-on mounting style, so the hinge fastens with screws instead of clip-on fittings and stays firmly located once installed. Integrated overlay adjustment of plus or minus 2mm is built into the hinge, so the door overlay position can be shifted laterally on the cabinet without redrilling, which helps align reveals during final fitting. Integrated depth adjustment of plus 3mm and minus 2mm lets the door move closer to or farther from the cabinet front, so the door face can be brought flush with neighboring fronts. Height adjustment is specified at the mounting plate, so vertical positioning is tuned at that interface to bring top and bottom gaps into line with adjacent doors.

Using This Sensys Hinge In Cabinet Installations

Where This Concealed Hinge Fits In Cabinet Builds

This product is classified as a concealed cabinet hinge within the European concealed long arm hinges group, so it is intended for cabinet doors where hidden hardware is preferred for a clean look. The description identifies it as an inset overlay face-frame;frameless hinge, so it is designed for both face-frame and frameless cabinet constructions in inset or overlay applications that match its geometry. Door thickness from 10mm and door thickness 10-19mm define its door material range, so it suits thinner doors often used in modern cabinetry while still covering up to 19mm construction. Zero protusion behavior allows door movement that keeps interior clearance, so cabinets with interior pull-outs can operate without removing the door.

Adjustment And Soft-Close Details That Reduce Rework

The hinge has an integrated overlay adjustment of plus or minus 2mm, so lateral door position can be fine-tuned after hanging, which shortens time spent correcting uneven reveals. Integrated depth adjustment of plus 3mm and minus 2mm allows front-to-back positioning at the hinge, so installers can bring multiple doors into the same plane without altering cup holes. Height adjustment at the mounting plate separates vertical correction from other settings, so each axis can be tuned independently for consistent gaps along stacked doors. The hinge uses the Silent System damping described for Sensys hinges, with a temperature stable damper in the range 41 degrees F to 104 degrees F (5 degrees C to 40 degrees C), so the soft-close action is maintained across typical room temperatures in kitchens or workspaces. A wide automatic closing angle of 35 degrees assists closing motion within that arc, so partially closed doors continue closing smoothly under the damper rather than stopping short.

Common Questions About The Hettich Sensys 9094320 Hinge

Selecting This Sensys Hinge For Cabinet Projects

The Hettich Sensys soft close hinge in nickel combines concealed European standard construction with zero protusion door travel, so it supports modern cabinet lines that rely on interior pull-outs. Its 110 degree opening angle and wide automatic closing angle of 35 degrees keep operation smooth from open through closing. With door thickness coverage from 10mm to 19mm, a 7.8mm cup depth, and integrated overlay, depth, and height adjustments, it gives installers room to fine-tune alignment without redrilling, making it a practical choice for precise cabinet door work.
